Keysight (Agilent)

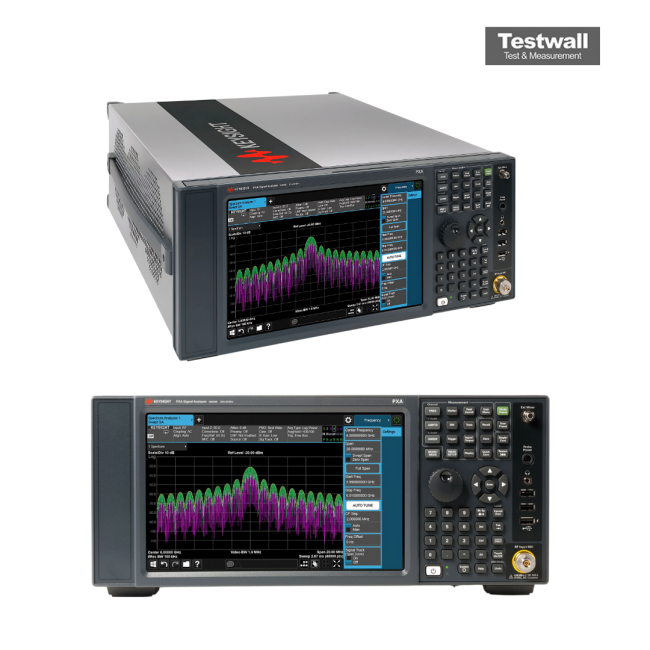

Keysight (Agilent) N9030B-544
44 GHz PXA Signal Analyzer, 2.4 mm (m)
3 Hz to 44 GHz Frequency Range
-163 dBm/Hz (typical, with preamplifier enabled) Displayed Average Noise Level (DANL)
-136 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) Phase Noise
±0.19 dB (typical, at 50 MHz reference frequency) Amplitude Accuracy
Up to 107 dB (third-order intermodulation dynamic range, typical) Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 44 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamplifier enabled) |
| Phase Noise | -136 dBc/Hz at 1 GHz carrier, 10 kHz offset (typical) |
| Amplitude Accuracy | ±0.19 dB (typical, at 50 MHz reference frequency) |
| Dynamic Range | Up to 107 dB (third-order intermodulation dynamic range, typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) continuous, DC coupled |
| Sweep Time | 1 ms to 4000 s (frequency domain, span > 10 Hz) |
| Connectivity and Interface | LAN (LXI Core 2011), USB, GPIB (optional); supports SCPI command set |
Keysight Technologies N9030B-544 Options:
- N9030B-544 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9030B-544 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9030B-544 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9030B-544 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9030B-544 - P44 - Preamplifier, 100 kHz to 44 GHz
- N9030B-544 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9030B-544 - B40 - 40 MHz analysis bandwidth
- N9030B-544 - B85 - 85 MHz analysis bandwidth
- N9030B-544 - B1X - 160 MHz analysis bandwidth
- N9030B-544 - MPB - Microwave preselector bypass
- N9030B-544 - EP0 - Enhanced phase noise, DDS LO
- N9030B-544 - LNP - Low noise path
- N9030B-544 - EXM - External mixing
- N9030B-544 - FP2 - Fast power; accelerates power measurements such as ACPR
- N9030B-544 - BBA - I/Q baseband inputs, analog; single-ended/differential, 50 Ω/1 MΩ impedance
- N9030B-544 - RT1 - Real-time analysis up to maximum available BW, basic detection
- N9030B-544 - RT2 - Real-time analysis up to maximum available BW, optimum detection
- N9030B-544 - RTR - Real-time spectrum recorder and analyzer application
- N9030B-544 - RTS - Real-time I/Q data streaming
- N9030B-544 - FT1 - Frequency mask trigger, basic detection
- N9030B-544 - FT2 - Frequency mask trigger, optimum detection
- N9030B-544 - EMC - Basic EMI precompliance
- N9030B-544 - EDP - Enhanced display package; includes spectrogram, trace zoom, and zone span
- N9030B-544 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9030B-544 - SSD - Additional removable solid-state drive
- N9030B-544 - SF1 - Exclude launch program; prevents launching of Windows programs from instrument application
- N9030B-544 - SF2 - Prohibit saving results; prevents saving/recall of measurement results or user configurations
- N9030B-544 - CR3 - Second IF output; wideband IF out
- N9030B-544 - CRP - Arbitrary IF out, 10 to 75 MHz (in 500 kHz steps)
- N9030B-544 - YAV - Y-axis video out; screen video (0-1 volt open circuit)
- N9030B-544 - ALV - Aux log video out; fast rise time video out
- N9030B-544 - UK6 - Commercial calibration certificate with test data
- N9030B-544 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal)
- N9030B-544 - A6J - ANSI Z540-1-1994 Calibration
| Model | N9030B-544 |
|---|
The Keysight (Agilent) N9030B-544 Signal Analyzer covers 3 Hz to 44 GHz, offering real-time bandwidth up to 1 GHz and support for external mixing in sub-THz applications. It ensures low phase noise and residual FM for demanding applications.
With built-in support for 5G, LTE, radar, and satellite, it’s modular and scalable to secure long-term investment and full vector signal analysis compatibility.
Testwall can supply the used Keysight (Agilent) N9030B-544, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9030B-544.
