Keysight (Agilent)

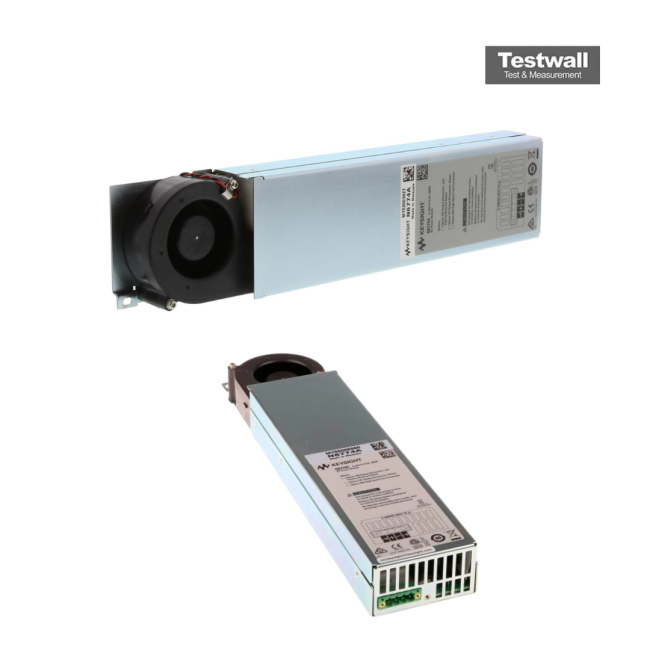

Keysight (Agilent) N6774A
DC Power Module, 35V, 8.5A, 300W
0 to 60 V Output Voltage Range
0 to 1.5 A Output Current Range
90 W Output Power
1 Number of Outputs
0.05% + 15 mV Voltage Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 60 V |
| Output Current Range | 0 to 1.5 A |
| Output Power | 90 W |
| Number of Outputs | 1 |
| Voltage Programming Accuracy | 0.05% + 15 mV |
| Current Programming Accuracy | 0.1% + 3 mA |
| Form Factor | Plug-in module for Keysight N6700 Modular Power System mainframe |
| Output Voltage Ripple and Noise (20 Hz to 20 MHz) | 3 mV rms / 15 mV peak-to-peak |
| Programming Interface | GPIB, LAN, USB (via N6700 mainframe) |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) N6774A Options:
- N6774A - 760 - Output disconnect/polarity reversal relays
- N6774A - 761 - Output disconnect relays
| Model | N6774A |
|---|
The Keysight (Agilent) N6774A is a 300 W basic DC power module delivering programmable voltage up to 35 V and current up to 8.5 A. It ensures high accuracy with voltage programming at 0.1% + 35 mV and current at 0.15% + 60 mA. Ripple & noise are minimized with values as low as 22 mV peak-to-peak.
Ideal for both ATE systems and bench testing, it integrates with N6700 and N6705 systems, supporting interfaces like GPIB, LAN, USB, and LXI Class C.
Testwall can supply the used Keysight (Agilent) N6774A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6774A.
