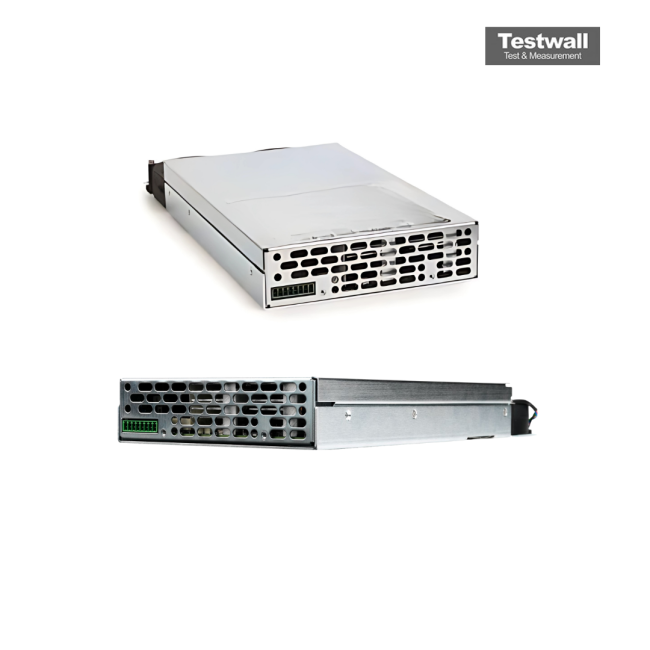

Keysight (Agilent) N6786A N6786A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to +20V |
| Output Current Range | -3A to +3A (Source and Sink) |
| Output Power | 40W Maximum |
| Voltage Programming Accuracy | 0.04% + 5mV |
| Current Programming Accuracy | 0.1% + 3mA |
| Number of Outputs | 2 Outputs (Dual-Channel) |
| Form Factor | Plug-in Module for N6700 Series Mainframe |
| Operating Mode | Source and Measure Unit (SMU) - 2-Quadrant Operation |
| Measurement Resolution | Voltage: 0.5mV / Current: 0.05mA |
| Interface/Connectivity | Controlled via N6700 Series Mainframe (GPIB, LAN, USB) |
Keysight (Agilent) N6786A N6786A Options:
- N6705B - N6705B-056 - Software License to Control N6705A/B with 14585A Control and Analysis Software (Option to the N6705B when ordered new)
- N6705U - N6705U-056 - Upgrade an N6705A/B DC Power Analyzer with 14585A Software License
- N6705U - N6705U-057 - Upgrade kit, rear panel only - replaces rear panel of N6705A with that of N6705B
- N6705U - N6705U-058 - SMU accessories - output adapter kit for N6705A, cable extensions for N6785A/86A
| Model | N6786A |
|---|
The Keysight (Agilent) N6786A is an 80 W, two-quadrant source/measure unit module, ideal for functional testing of battery-powered devices. It supports voltage ranges of 6, 10, 15, and 20 V, with current output from ±4 to ±8 A and high accuracy: 0.025% +1.8 mV for voltage and 0.04% +1.4 mA for current.
Engineered for precision sourcing, the N6786A offers low PARD (≤15 mVpp), fast output modulation up to 100 kHz, and integrates seamlessly with N6700/N6705 chassis systems, making it suitable for battery emulation and power consumption tests.
Testwall can supply the used Keysight (Agilent) N6786A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6786A.
