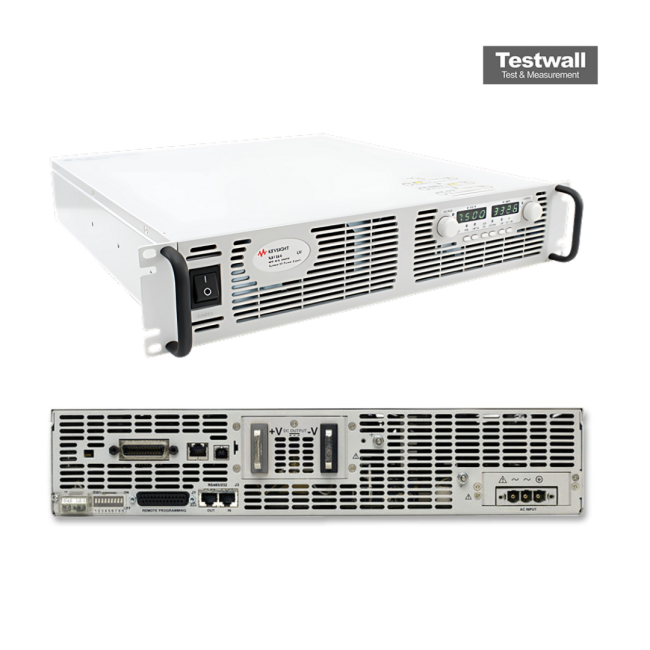

Keysight (Agilent) N8756A Power Supply, 40V, 125A, 5000W Power Supply
Power Supply, 40V, 125A, 5000W
0 – 40 V Output Voltage
0 – 125 A Output Current
5000 W Output Power
1 Number of Outputs
208 VAC / 400 VAC (3-phase) Input Voltage
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 40 V |
| Output Current | 0 – 125 A |
| Output Power | 5000 W |
| Number of Outputs | 1 |
| Input Voltage | 208 VAC / 400 VAC (3-phase) |
| Input Frequency | 47 – 63 Hz |
| Programming Interface | GPIB, LAN (LXI), USB |
| Form Factor | Rack-mountable, 2U |
| Voltage Programming Accuracy | 0.05% + 20 mV |
| Current Programming Accuracy | 0.1% + 125 mA |
Keysight (Agilent) N8756A Power Supply, 40V, 125A, 5000W Power Supply Options:
- N8756A - Opt 861 - Unterminated line cord for 208 V 3-phase AC input voltage (Option 208)
- N8756A - Opt 862 - Unterminated line cord for 400 V 3-phase AC input voltage (Option 400)
- N8756A - Opt 208 - 190-240 V, 3-phase AC, 50/60 Hz input (use with line cord Opt 861)
- N8756A - Opt 400 - 380-415 V, 3-phase AC, 50/60 Hz input (use with line cord Opt 862)
| Model | N8756A |
|---|
The Keysight (Agilent) N8756A is a compact 2U DC power supply offering 40V, 125A, and 5000W output with precise control and high efficiency. It supports analog/resistance programming and allows series or parallel configurations to extend voltage or current capabilities.
This model provides superior output accuracy (0.025% + 30mV for voltage and 0.1% + 375mA for current) and low noise levels, with 75mV peak-to-peak and 10mV RMS ripple.
Testwall can supply the used Keysight (Agilent) N8756A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8756A.
