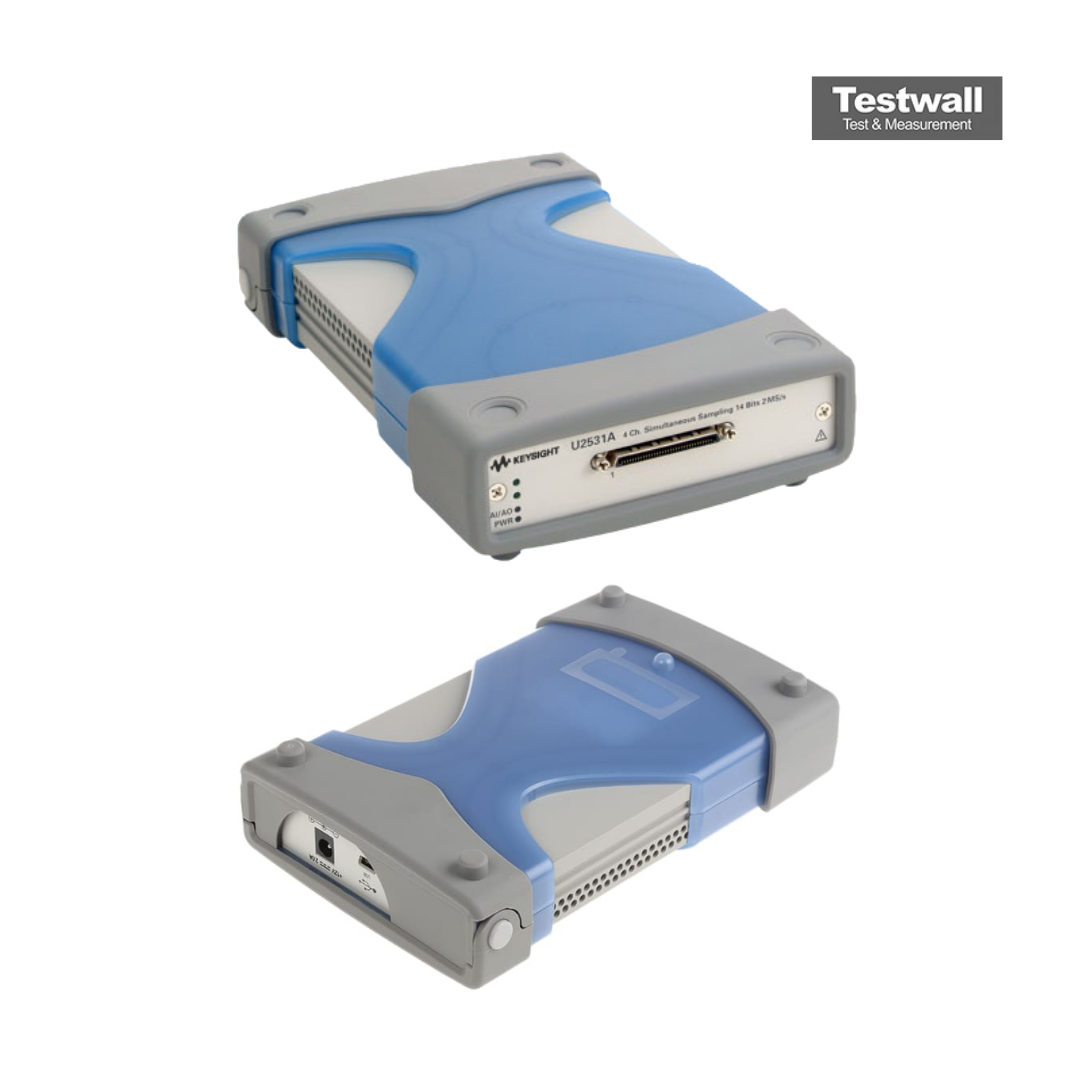

Keysight (Agilent) U2531A
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Sampling Rate | 2 MS/s aggregate (500 kS/s per channel simultaneous sampling) |
| Resolution | 14-bit |
| Input Voltage Range | ±10 V |
| Input Impedance | 1 MΩ |
| On-Board Memory | 256 MB per channel |
| Interface | USB 2.0 High-Speed |
| Digital I/O Lines | 8 bidirectional digital I/O lines |
| Operating Temperature | 0 °C to 55 °C |
| Software Compatibility | Compatible with Keysight BenchVue, MATLAB, LabVIEW, and IVI-COM/C drivers |
Keysight (Agilent) U2531A Options:
- U2901A - U2901A - Terminal block and SCSI-II 68-pin connector with 1-meter cable
- U2902A - U2902A - Terminal block and SCSI-II 68-pin connector with 2-meter cable
| Model | U2531A |
|---|
The Keysight (Agilent) U2531A USB modular data acquisition module offers 14-bit resolution with simultaneous analog input channels sampling at up to 2 MSa/s/ch, dual 12-bit analog outputs at 1 MSa/s, 24-bit TTL I/O, and 2 general-purpose digital counters. It connects via high-speed USB 2.0 under USBTMC-USB488 standards and includes BenchVue software (BV0025B) for enhanced control and automation.
Ideal for transient signal analysis and closed-loop feedback systems, the U2531A supports digital multimeter and simple oscilloscope modes, integrates with U2781A chassis, and works with U2901A/U2902A terminal blocks for easy interfacing.
Testwall can supply the used Keysight (Agilent) U2531A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2531A
