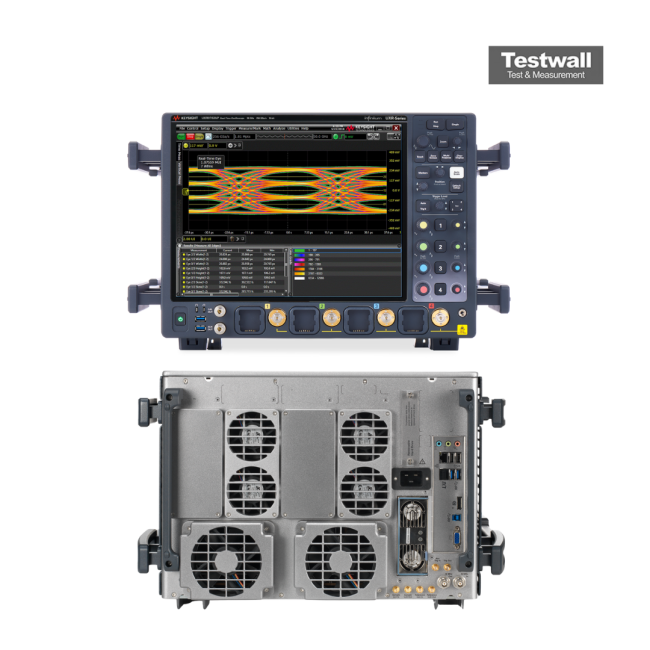

Keysight (Agilent) UXR0702AP
| Attribute | Value |
|---|---|
| Bandwidth | 7 GHz |
| Number of Channels | 2 |
| Sample Rate | 256 GSa/s |
| Vertical Resolution | 10-bit ADC (up to 12-bit with averaging) |
| Memory Depth | 2 Gpts per channel |
| Rise Time | 58 ps |
| Input Impedance | 50 Ohm |
| Voltage Range | ±1 V full scale (50 mV/div to 1 V/div) |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
| Operating System | Windows 10 IoT Enterprise |
Keysight (Agilent) UXR0702AP Options:
- UXR0702AP - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0702AP - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0702AP - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0702AP - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0702AP - N2157A-005 - Infiniium UXR 59AP Model bandwidth upgrade – 2-Channel – 59 GHz to 70 GHz
- UXR0702AP - N2157A-007 - Infiniium UXR 70AP Model bandwidth upgrade – 2-Channel – 70 GHz to 80 GHz
- UXR0702AP - N2129BU-010 - Bandwidth upgrade – 2-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0702AP - N2129BU-011 - Bandwidth upgrade – 2-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0702AP - N2129BU-012 - Bandwidth upgrade – 2-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0702AP - N2129BU-013 - Bandwidth upgrade – 2-Channel Infiniium UXR – 100 GHz to 110 GHz
- UXR0702AP - N2129BU-033 - Upgrade from 2 channels to 4 channels – for 70 GHz Infiniium UXR
- UXR0702AP - N2125A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.0 mm
- UXR0702AP - N2126A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.85 mm
- UXR0702AP - N2131A-01T - Additional removable SSD for Infiniium UXR Real-Time Oscilloscope – 960GB
- UXR0702AP - N2156A - Rack mount kit for Infiniium UXR Real-Time Oscilloscopes
- UXR0702AP - N2158A - UXR Real-Time Oscilloscope Transportation case
| Model | UXR0702AP |
|---|
The Keysight (Agilent) UXR0702AP offers 70 GHz bandwidth across 2 full-bandwidth channels, each supported by a 10-bit ADC and 256 GSa/s sampling rate. With up to 2 Gpts memory and 1 mm connector inputs, it provides precise, high-speed signal analysis. This oscilloscope is upgradable to 110 GHz and supports user-defined functions, SDA, and clock recovery.
Designed for performance-critical environments, it includes an optional on-site self-calibration module to enhance measurement accuracy. Ideal for high-frequency digital and optical applications.
Testwall can supply the used Keysight (Agilent) UXR0702AP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) UXR0702AP.
