Kikusui

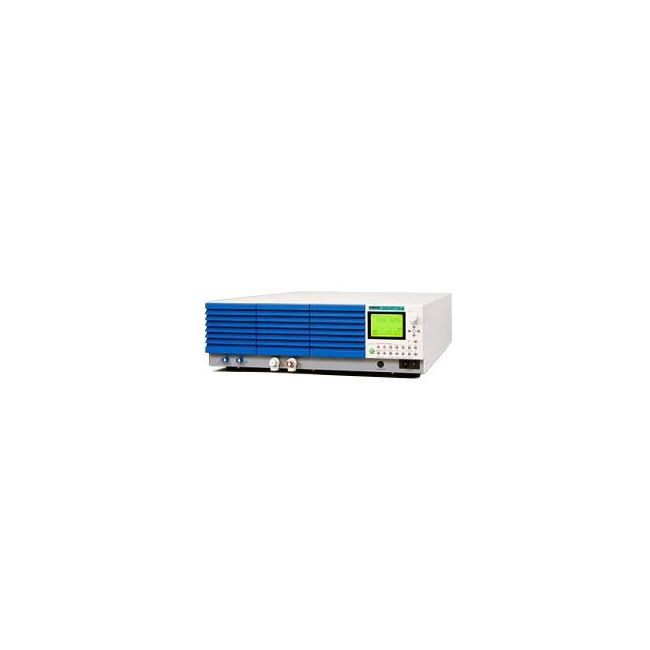

Kikusui PBZ20-20
Bi-Polar DC Power Supply, 20V, 20A, 400W
0 to ±20 V Output Voltage Range
0 to ±20 A Output Current Range
400 W Maximum Output Power
1 mV Output Voltage Resolution
1 mA Output Current Resolution
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±20 V |
| Output Current Range | 0 to ±20 A |
| Maximum Output Power | 400 W |
| Output Voltage Resolution | 1 mV |
| Output Current Resolution | 1 mA |
| Line Regulation (Voltage) | ≤ 0.01% + 2 mV |
| Load Regulation (Voltage) | ≤ 0.01% + 2 mV |
| Ripple and Noise (Voltage, rms) | ≤ 1 mV rms |
| Interface | USB, RS-232C, GP-IB (optional) |
| AC Input | 100/120/220/240 VAC, 50/60 Hz |
Kikusui PBZ20-20 Options:
- PBZ20-20 - LAN - LAN interface (IEEE488.2/SCPI, LXI Class C compliant)
- PBZ20-20 - PK01-PBZ - Parallel operation kit (For bench-top/desktop use)
- PBZ20-20 - PK02-PBZ - Parallel operation kit (For EIA inch size rack-mounted system)
- PBZ20-20 - PK03-PBZ - Parallel operation kit (For JIS metric size rack-mounted system)
- PBZ20-20 - KRB3-TOS - Rack mount brackets (For EIA inch size)
- PBZ20-20 - KRB150-TOS - Rack mount brackets (For JIS metric size; blank panel included)
- PBZ20-20 - VS01 - Vertical stand
- PBZ20-20 - Wavy for PBZ - Sequence creation software (Windows Vista / Windows 7 / Windows 8 / Windows 10)
| Model | PBZ20-20 |
|---|
BK PRECISION PBZ220-20 Bi-Polar DC Power Supply The BK Precision PBZ20-20 is a bipolar type DC regulated power source that can continuously change both + and – polarities passing through 0 without changing the output terminal. It is capable of 4-quadrant operation, meaning that it is capable of both sourcing and sinking power, ideal for driving both inductive and capacitive loads. This power supply comes equipped with a built-in function generator, allowing for easy waveform and sequence generation. The output cur of the BK Precision PBZ20-20 can be expanded among multiple units by using the synchronization feature. The switching + linear design of the BK Precision PBZ20-20 has allowed for a 40% reduction in weight while achieving extremely high-speed operation (CV mode: 100 kHz) and low ripple noise. The unipolar function is unique to the PBZ series power supply. “Unipolar mode” allows the PBZ20-20 to apply cur in both directions (source and sink) while cur flows in a single direction. Built-in measurement features allow for easy testing without the need for multimeters and other measurement devices. Furthermore, the measurement time TRIG signal allows the operator to program measurement start time and measurement delay time. Specifications for the BK PRECISION PBZ220-20 Bi-Polar DC Power Supply Include:Voltage20VCur20APower 400WPower Factor0.95 Typical
