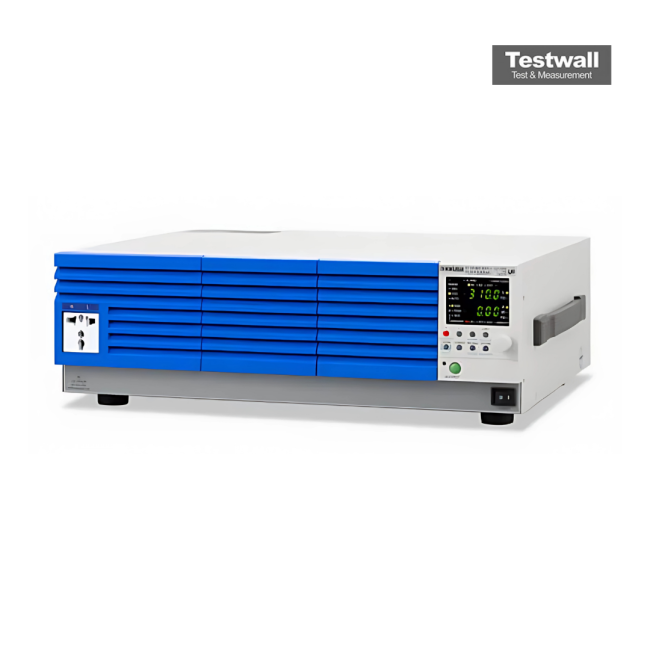

Kikusui PCR1000MA
| Attribute | Value |
|---|---|
| Output Capacity | 1000 VA |
| Output Voltage Range | 0 to 150 V / 0 to 300 V (switchable) |
| Output Frequency Range | 45 Hz to 999.9 Hz |
| Output Current (Max) | 13.3 A (150 V range) / 6.7 A (300 V range) |
| Input Voltage | Single-phase 200 V to 240 V AC |
| Waveform | Sine wave |
| Voltage Accuracy | ±(0.5% of setting + 0.5 V) |
| Frequency Accuracy | ±0.1% of setting |
| Output Impedance | Low impedance design for stable output |
| Interface / Control | RS-232C / GP-IB (optional), front panel control |
Kikusui PCR1000MA 1000VA Voltage/frequency Converter Options:
- PCR1000MA - EX08 - Analog Interface Board
- PCR1000MA - IB22 - Gpib Interface Board
| Model | PCR1000MA |
|---|
The Kikusui PCR1000MA is a high-performance 1000VA voltage/frequency converter delivering 0–310V AC and ±438V DC output. Operating across 40–500Hz, it integrates advanced PWM inverter technology within a compact portable unit. The system includes LAN (LXI) and USB connectivity with optional GPIB, enabling seamless test system integration. It supports remote sensing for accurate voltage/current readings and features memory functions, DC mode, and robust protection circuits.
Ideal for precise AC/DC power applications, the PCR1000MA’s versatile output, monitoring features, and compact design support a wide range of test environments.
Testwall can supply the used Kikusui PCR1000MA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PCR1000MA.
