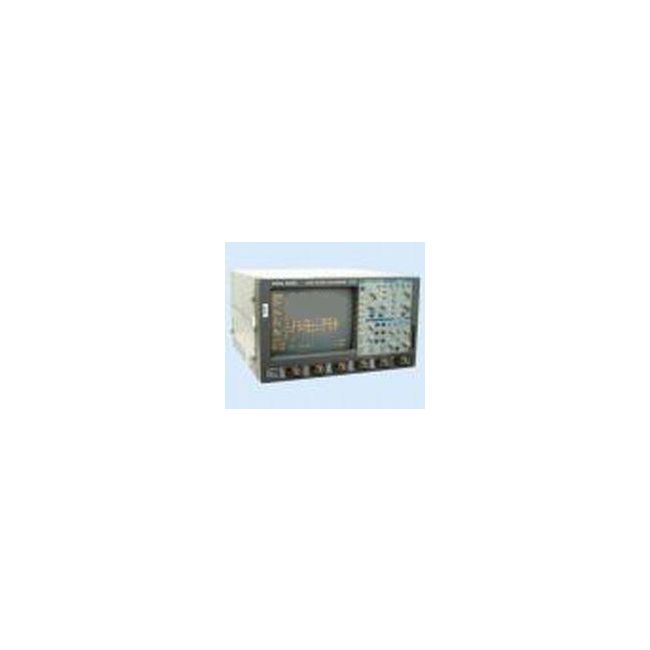

LeCroy 9304A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 100 MS/s per channel |
| Record Length | Up to 50,000 points per channel |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD display |
| Trigger Types | Edge, Width, Pattern, TV, Glitch, and more |
LeCroy 9304A Options:
- 9304A - WP01 - Math Package: Envelope and ERES modes (up to 11 bits vertical resolution, up to 10^6 averages)
- 9304A - WP02 - Math Package: FFT Spectral Analysis with four windowing functions and FFT averaging
- 9304AM - - 200k point acquisition memory version (vs 9304A 50k points)
- 9304A - - PCMCIA Portable Hard Drive option for waveform and setup storage
- 9304A - - Memory Card option for waveform and setup storage
- 9304A - - DOS Compatible Floppy Disk option (includes Centronics parallel interface)
- 9304A - - Internal High Resolution Graphics Printer option (includes Centronics parallel interface)
| Model | 9304A |
|---|
The Lecroy 9304A is a four-channel 9300-series digital storage oscilloscope with 500 MS/s sampling rate and segmented memory for extended capture durations. It provides timebases from 1 ns/div to 1000 s/div, supporting both analog and digital coupling modes for precise signal analysis. Advanced triggering includes edge, width, dropout, interval, pattern recognition, and TV sync modes.
Ideal for detailed transient analysis and complex signal diagnostics, the Lecroy 9304A combines high-speed acquisition with versatile triggering for efficient debugging and waveform observation.
Testwall can supply the used Lecroy 9304A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Lecroy 9304A.
