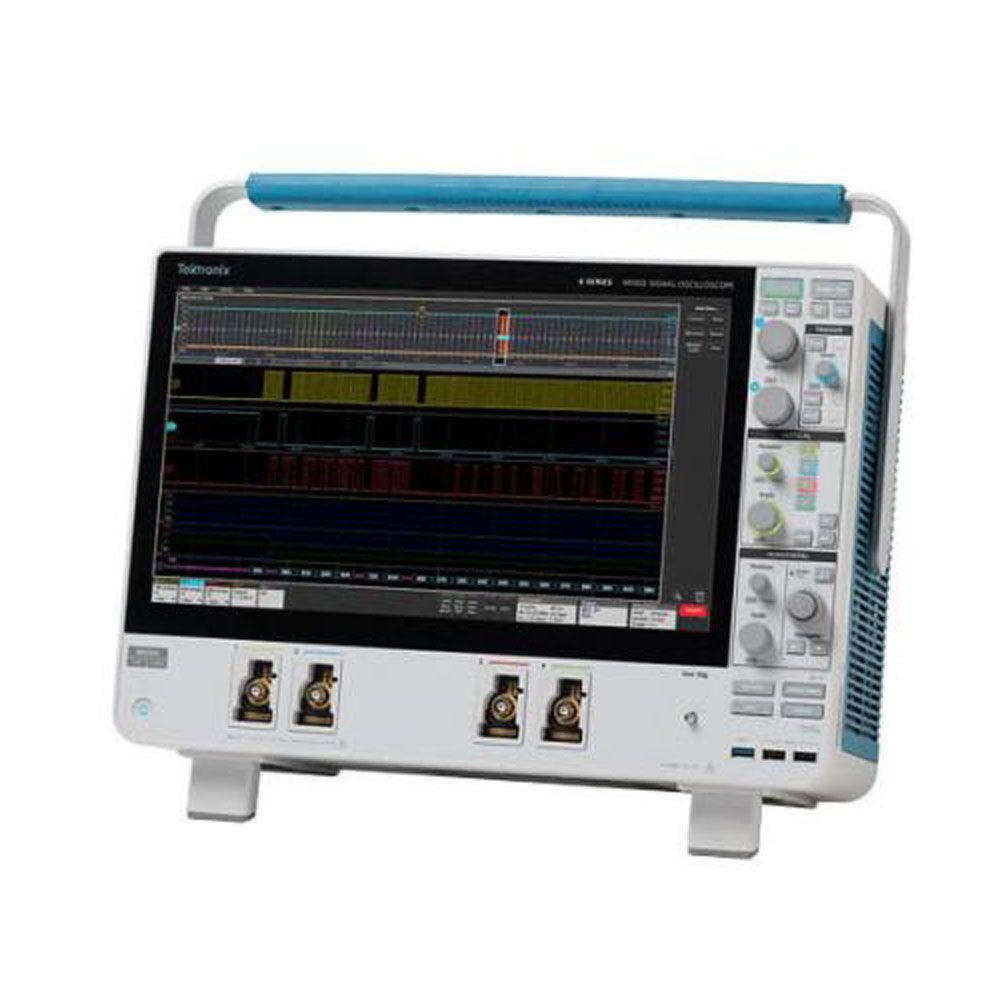

Tektronix MSO24 2-BW-70
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz (option 2-BW-70) |
| Number of Analog Channels | 4 |
| Digital Channels | 16 (optional 2-MSO logic probe) |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 12-bit ADC |
| Display | 10.1-inch capacitive touchscreen (1280 x 800) |
| Form Factor | Portable, 1.8 kg, optional battery pack |
| Series | Tektronix 2 Series MSO |
The Tektronix MSO24 2-BW-70 is the 70 MHz bandwidth configuration of the MSO24, a 4-channel 2 Series MSO. It samples at 2.5 GS/s with a 12-bit ADC, and offers 10 M points record length as standard. The 2 Series MSO is a lightweight, portable mixed signal oscilloscope with the same touchscreen user interface as the 4, 5 and 6 Series, suited to bench, field and education use.
Bandwidth on the 2 Series MSO is set by software option, so the MSO24 can be ordered at 70 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz. This listing is for the 70 MHz unit (option 2-BW-70). If you need a different bandwidth, see the MSO24 overview page for all configurations.
Testwall can supply the used Tektronix MSO24 2-BW-70, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO24.
