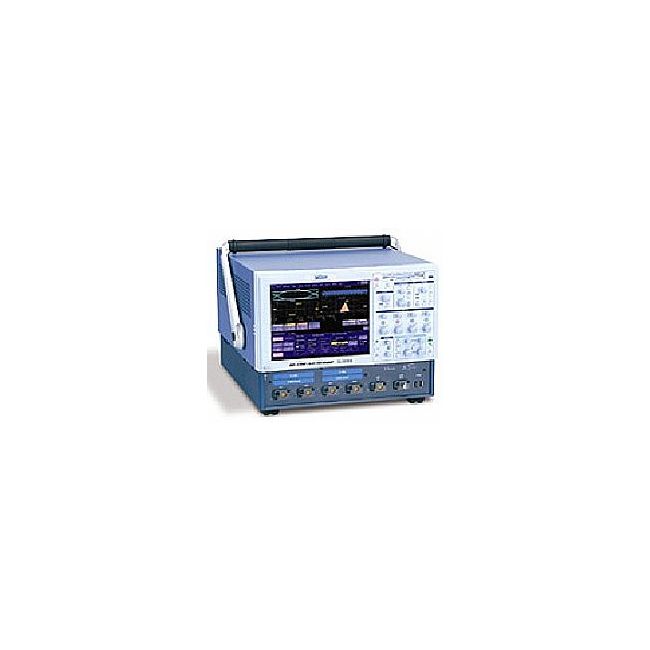

LeCroy SDA6000A
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 20 GS/s |
| Number of Channels | 4 |
| Memory Depth | 24 Mpts/Ch (48 Mpts interleaved) |
| Vertical Resolution | 8 bits |
| Rise Time | 58.3 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 10.4-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer with EYE diagram, jitter analysis, and serial pattern triggering |
| Connectivity | USB, Ethernet (LAN), GPIB |
LeCroy SDA6000A Options:
- SDA6000A - SDA-VL - 16 Mpts/Ch (32 Mpts/Ch interleaved) Memory Option
- SDA6000A - SDA-XL - 25 Mpts/Ch (50 Mpts/Ch interleaved) Memory Option
- SDA6000A - MS-32-DSA - 32 Digital Oscilloscope Mixed Signal Option
- SDA6000A - AORM - Advanced Optical Recording Measurement Software
- SDA6000A - DDM2 - Disk Drive Measurement Software Package
- SDA6000A - DFP2 - Digital Filter Software Package
- SDA6000A - LECROYM1/ADV-1 - Advanced M1 Software Package for Jitter and Timing Measurements (1 seat)
- SDA6000A - LECROYM1/ADV-4 - Advanced M1 Software Package for Jitter and Timing Measurements (4 seats)
- SDA6000A - LECROYM1/BASIC - Basic M1 Software Package for Jitter and Timing Measurements
- SDA6000A - XDEV - Advanced Customization Software Package
- SDA6000A - XWEB - Processing Web Editor Software Package for Functions and Parameters
- SDA6000A - ENET - Ethernet Test Software Package
- SDA6000A - SDA-HDMI - HDMI Compliance Test Software Package
- SDA6000A - SDA-PCIE-G2 - PCI Express Development and Compliance Software for Gen1 and Gen2
- SDA6000A - SDA-SAS - SAS I/II Solution Analysis Compliance Software Package
- SDA6000A - SDA-SATA - SATA Gen1/Gen2 Solution Analysis Software Package
- SDA6000A - SDA-UWB - UWB Test Solution Software Package
- SDA6000A - USB2 - USB 2.0 Compliance Test Software Package
- SDA6000A - GPIB-1 - IEEE-488 GPIB Control Interface
- SDA6000A - DMD-1 - Dual Monitor Display
- SDA6000A - WM-RHD - Removable Hard Drive Package (includes USB, CD-ROM, removable hard drive, and spare hard drive)
- SDA6000A - WM-RHD-02 - Additional Removable Hard Drive
- SDA6000A - WM-GP02 - Internal Graphics Printer
- SDA6000A - RMA-25 - Rackmount Adapter with 25" (64 cm) Slides
- SDA6000A - RMA-30 - Rackmount Adapter with 30" (76 cm) Slides
| Model | SDA6000A |
|---|
The LeCroy SDA6000A is a high-end digital serial analyzer offering 6 GHz bandwidth and up to 20 GS/s per channel. It features deep memory with 50 Mpts standard and 100 Mpts/channel as an option, enhanced resolution up to 11-bit with ERES, and real-time jitter and eye diagram analysis. Its intuitive X-Stream architecture and touchscreen UI match the capabilities of the SDA‑6020.
This instrument is ideal for high-speed signal integrity testing and advanced debugging, ensuring precise characterization with comprehensive analytical tools.
Testwall can supply the used LeCroy SDA6000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy SDA6000A
