Tektronix MSO2024B
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s on all channels simultaneously |
| Record Length | 1 M points on all channels |
| Vertical Resolution | 8-bit |
| Display | 7-inch WVGA (800 x 480) TFT color display |
| Serial Bus Triggering and Analysis | I2C, SPI, CAN, LIN, RS-232/422/485/UART (optional) |
| Waveform Capture Rate | Up to 5,000 waveforms per second |
| Connectivity | USB 2.0 Host and Device ports, CompactFlash card slot |
| Model | MSO2024B |
|---|

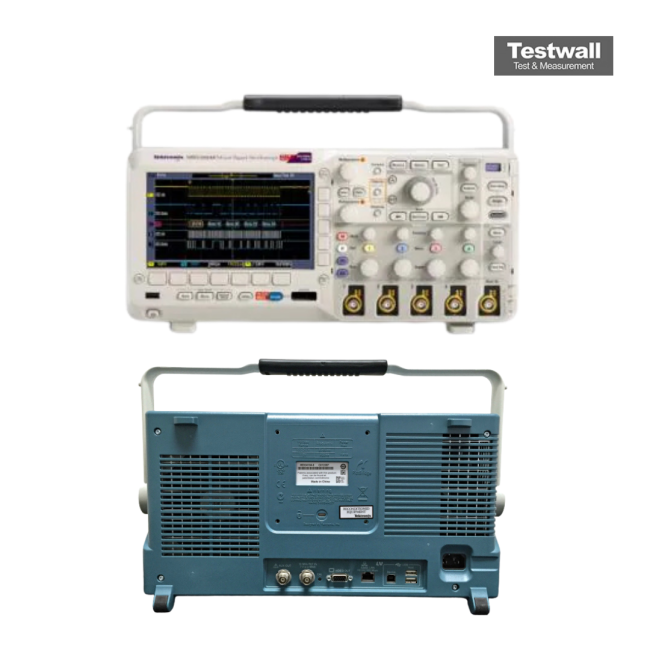

The Tektronix MSO2024B Mixed Signal Oscilloscope provides up to 200 MHz bandwidth, 1 GS/s sampling rate, and 20-channel support (4 analog + 16 digital), making it ideal for mixed-signal analysis. It features a deep 1 Mpoint memory on all channels, 2.1 ns rise time, and 5,000 waveforms/sec capture rate to expose glitches and rare events.
This oscilloscope simplifies waveform analysis with digital channel grouping and USB keyboard support for labeling, streamlining design debug and providing complete visibility into system behavior.
Testwall can supply the used Tektronix MSO2024B Mixed Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2024B Mixed Signal Oscilloscope.
