LeCroy WaveMaster 8400A XXL
4 Channel 20GSa/sec 4GHz Digital Oscilloscope
4 GHz Bandwidth
20 GS/s (single channel), 10 GS/s (all channels) Sample Rate
4 Number of Channels
up to 256 Mpts/ch (XXL configuration) Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (all channels) |
| Number of Channels | 4 |
| Memory Depth | up to 256 Mpts/ch (XXL configuration) |
| Vertical Resolution | 8 bits |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch color LCD touchscreen |
| Timebase Range | 20 ps/div to 160 s/div |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial Data, and more |
| Connectivity / Interface | USB, Ethernet (LAN), GPIB (optional) |
| Model | WaveMaster 8400A |
|---|

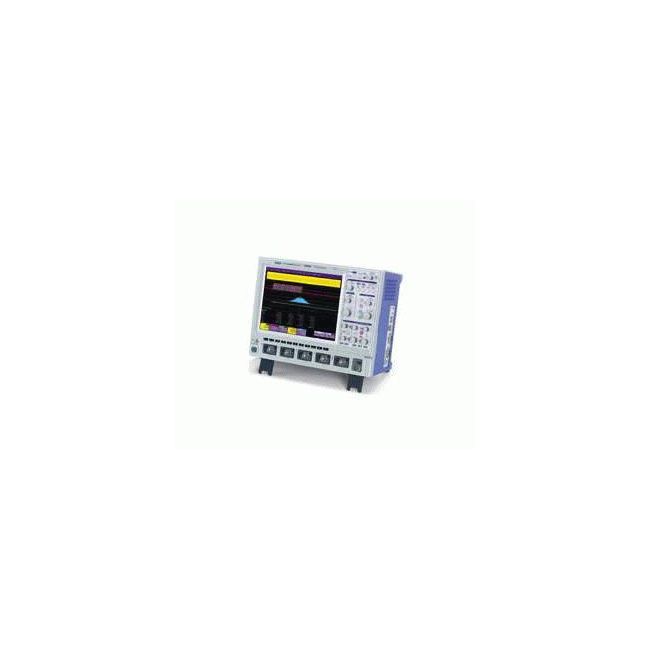

The LeCroy WaveMaster 8400A XXL features 4 GHz bandwidth and 20 GS/s per channel, designed with four input channels for detailed waveform analysis and signal integrity testing.
Its XXL memory option supports 50–100 Mpts/channel, enabling deep waveform capture with full long-record diagnosis capability, ideal for demanding debug applications.
Testwall can supply the used LeCroy WaveMaster 8400A XXL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveMaster 8400A XXL.
