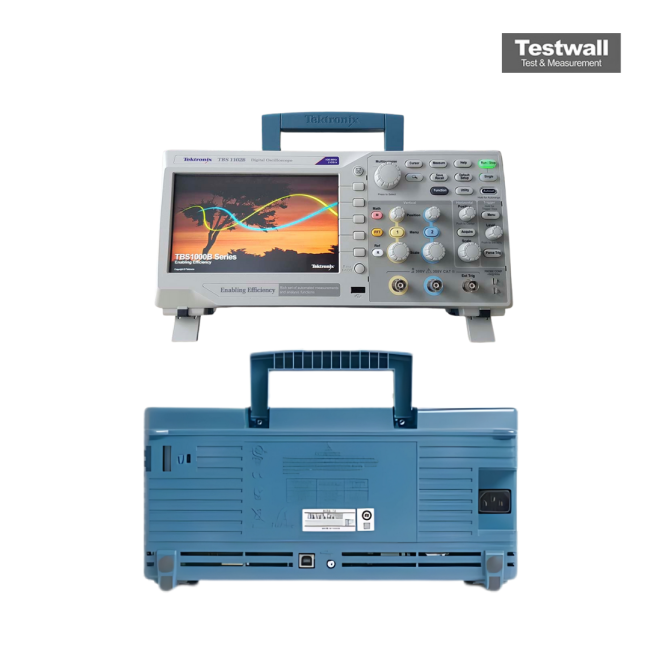

Tektronix TBS1102B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch WVGA (800 x 480) TFT color LCD |
| Connectivity | USB 2.0 Host and Device ports |
| Input Impedance | 1 MΩ in parallel with 20 pF |
Tektronix TBS1102B Options:
- TBS1102B - L1 - French overlay
- TBS1102B - L2 - Italian overlay
- TBS1102B - L3 - German overlay
- TBS1102B - L4 - Spanish overlay
- TBS1102B - L5 - Japanese overlay
- TBS1102B - L6 - Portuguese overlay
- TBS1102B - L7 - Simplified Chinese overlay
- TBS1102B - L8 - Traditional Chinese overlay
- TBS1102B - L9 - Korean overlay
- TBS1102B - L10 - Russian overlay
- TBS1102B - A0 - North America power plug (115 V, 60 Hz)
- TBS1102B - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1102B - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1102B - A3 - Australia power plug (240 V, 50 Hz)
- TBS1102B - A4 - North America power plug (240 V, 50 Hz)
- TBS1102B - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1102B - A6 - Japan power plug (100 V, 50/60 Hz)
- TBS1102B - A10 - China power plug (50 Hz)
- TBS1102B - A11 - India power plug (50 Hz)
- TBS1102B - A12 - Brazil power plug (60 Hz)
- TBS1102B - A99 - No power cord
- TBS1102B - D1 - Calibration Data Report
- TBS1102B - P2220 - Replaces standard probes with P2220 probes (200 MHz passive voltage probes with 1x/10x attenuation)
The Tektronix TBS1102B is a 100MHz bandwidth, 2GS/s sample rate, 4-channel digital oscilloscope designed for high-precision waveform analysis. It offers advanced triggering capabilities, large waveform capture memory, and a high-resolution display for accurate signal visualization.
Ideal for education, troubleshooting, and design applications, this scope supports a range of measurement functions and connectivity options, ensuring versatility across multiple testing scenarios.
Testwall can supply the used Tektronix TBS1102B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TBS1102B.
