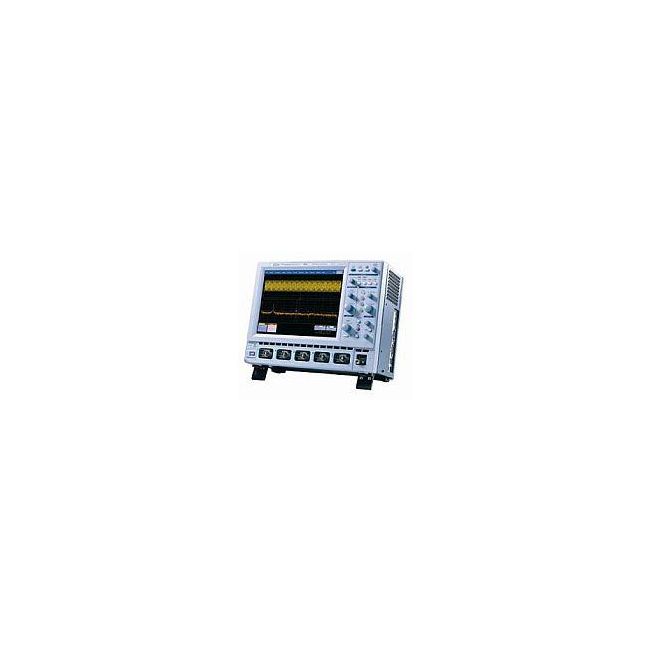

LeCroy WaveSurfer 104Xs
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 5 GS/s |
| Memory Depth | Up to 32 Mpts/ch (interleaved) |
| Vertical Resolution | 8 bits |
| Display | 10.4-inch color touchscreen LCD |
| Input Impedance | 1 MΩ or 50 Ω |
| Maximum Input Voltage | 400V (CAT I), 1 MΩ; 5 Vrms, 50 Ω |
| Timebase Range | 200 ps/div to 1000 s/div |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Model | WaveSurfer 104Xs |
|---|
The LeCroy WaveSurfer 104Xs is a 1 GHz High Definition (HD4096) oscilloscope with a 12-bit vertical resolution, delivering exceptional waveform fidelity. It offers 5 GS/s sampling and up to 12.5 Mpts/channel memory (25 Mpts interleaved), ensuring detailed signal analysis. The large 10.1″ capacitive touch screen enhances usability and precision control.
This unit includes a built-in function generator, 16-channel MSO option, serial-data triggers, WaveScan anomaly detection, and seamless multi-instrument integration for advanced debugging capabilities.
Testwall can supply the used LeCroy WaveSurfer 104Xs, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveSurfer 104Xs.
