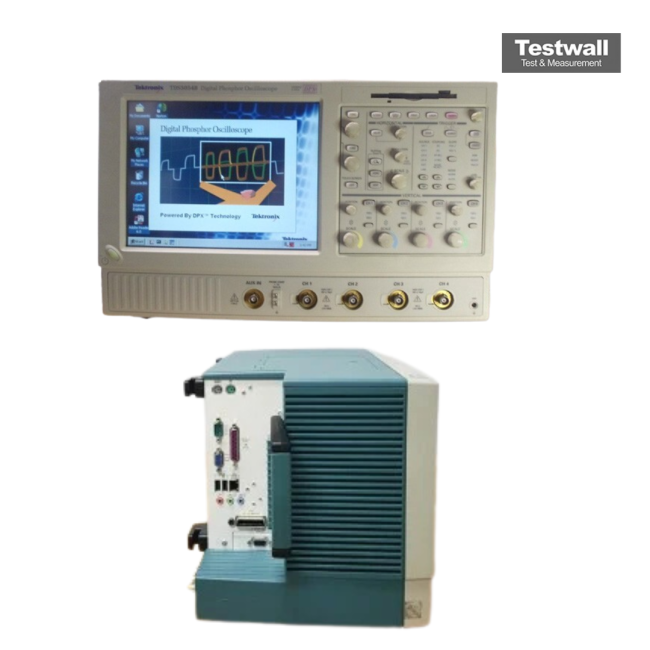

Tektronix TDS5054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (on all channels simultaneously) |
| Record Length | Up to 16 MB per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Input Impedance | 1 MΩ or 50 Ω |
| Operating System | Windows XP Embedded |
Tektronix TDS5054 Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS5054 - 2M - Extended record length
- TDS5054 - 3M - Extended record length
- TDS5054 - SM - Serial communication mask testing
- TDS5054 - JT3 - TDSJIT3 jitter and timing analysis
- TDS5054 - PWR - TDSPWR3 power measurement and analysis
- TDS5054 - USB - TDSUSB2 USB 2.0 compliance testing
- TDS5054 - ET3 - TDSET3 Ethernet compliance testing
- TDS5054 - 1K - Instrument cart
- TDS5054 - 1R - Rack mount kit
The Tektronix TDS5054 digital phosphor oscilloscope features 500 MHz bandwidth, 5 GS/s sampling, 2 MB record length, and a waveform capture rate up to 100,000 wfms/s. With 4 channels, DPX™ acquisition technology, advanced triggers, and a bright 10.4” color display, it’s engineered for high-speed, complex signal analysis.
This model offers seamless operation via an intuitive interface, Windows 2000 OS, and connectivity with Tektronix logic analyzers. Its compact footprint fits any bench setup.
Testwall can supply the used Tektronix TDS5054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS5054.
