Megger (AVO Biddle)
Megger EZTHUMP
Portable Fault Location System 12kV
Up to 2500V DC Output Voltage
Up to 1000 Joules Output Energy
DC Arc Reflection Thumper Thumper Type
Adjustable, up to 1 thump per second Repetition Rate
115/230V AC, 50/60 Hz Power Supply
| Attribute | Value |
|---|---|
| Output Voltage | Up to 2500V DC |
| Output Energy | Up to 1000 Joules |
| Thumper Type | DC Arc Reflection Thumper |
| Repetition Rate | Adjustable, up to 1 thump per second |
| Power Supply | 115/230V AC, 50/60 Hz |
| Compatible Cable Types | Power cables up to 35kV |
| Display | Digital voltage and energy display |
| Safety Features | Automatic discharge, safety interlock system |
| Portability | Portable unit with carrying handle |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
Megger EZTHUMP Options:
- EZTHUMP - 15 - Select Cable Length: 15 ft (4.5 m) Standard cable
- EZTHUMP - 50 - Select Cable Length: 50 ft (15 m) Custom Cable
- EZTHUMP - T1 - Select Cable Termination: 14 mm male MC with hotline clamps (NAFTA)
- EZTHUMP - T2 - Select Cable Termination: 14 mm male MC with vise grips
- EZTHUMP - T3 - Select Cable Termination: 2 x hardwired battery clamps (typical UK, no alternative termination attachments)
- EZTHUMP - T4 - Select Cable Termination: 2 x 10 mm female MC with battery clamps (CEE, ROW & CSA)
- EZTHUMP - S - Select Software Option: Sectionalizing software (HDW patent US B 6, 683,459 B2)
- EZTHUMP - WK - Permanently Attached Cart: Provides special permanently attached cart with sturdy stainless steel frame, telescope handle and air tires
- EZTHUMP - P - Delivery without safety key switch (check whether permissible under local safety regulations)
| Model | EZTHUMP |
|---|

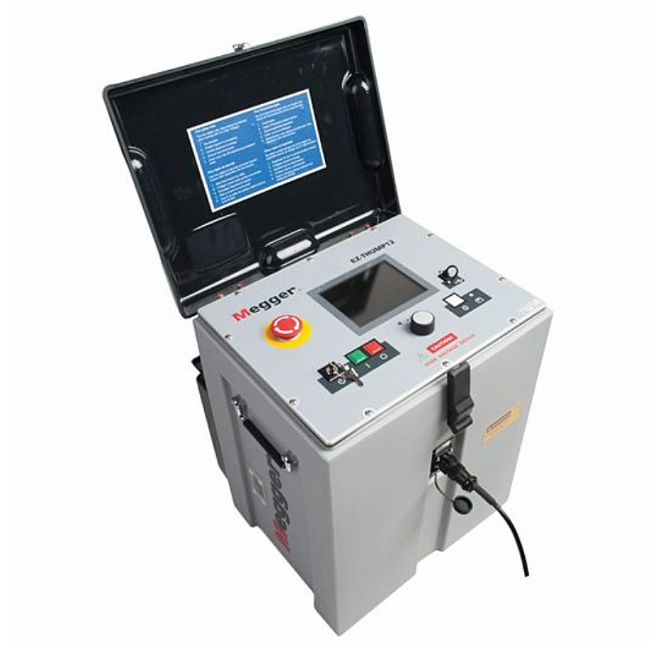

The Megger EZTHUMP 12kV is a battery and AC-powered portable fault location system, engineered for LV and MV cable testing. It delivers 500 J at 12 kV via a capacitor surge discharge system and features integrated TDR and ARM for precise fault identification.
Operated through a user-friendly E-TRAY GUI with rotary control, it supports sheath fault location and acoustic/electromagnetic pinpointing using tools like DigiPhone 2.
Testwall can supply the used Megger EZTHUMP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger EZTHUMP.
