Vitrek 953I
| Attribute | Value |
|---|---|
| Voltage Test Range | Up to 10 kVDC / 10 kVAC |
| Hipot Test Modes | AC Hipot, DC Hipot, Insulation Resistance (IR), Ground Bond, Continuity |
| AC Hipot Output Frequency | 25 Hz to 999 Hz (variable frequency output) |
| Maximum Output Current | 200 mA AC / 20 mA DC |
| Insulation Resistance Range | 100 kΩ to 50 TΩ |
| Ground Bond Test Current | Up to 30 A AC |
| Measurement Accuracy | ±0.5% of reading (voltage and current) |
| Interface & Connectivity | USB, RS-232, Handler I/O, optional IEEE-488 (GPIB) |
| Display | Large color touchscreen LCD display |
| Regulatory Compliance | Meets IEC 62368-1, UL 60950-1, EN 60950-1 safety testing standards |
Vitrek 953I Options:
- 953I - 500VA - 500VA Output Option
- 953I - AC-2 - 200mA 2 KVAC Max Output Option
- 953I - AC-30 - 30KVAC External Option
- 953I - RPOO-95 - Rear Panel Only Output Terminals
- 953I - HSS-1 - High Side Current Measurement (for grounded loads)
- 953I - PMT-1 - Pulse Mode / High Speed Flash Test Option
- 953I - GPIB-9 - Optional GPIB Interface
- 953I - ISO-CALN-95X - ISO 17025 Accredited Cal Cert (with purchase)
| Model | 953I |
|---|

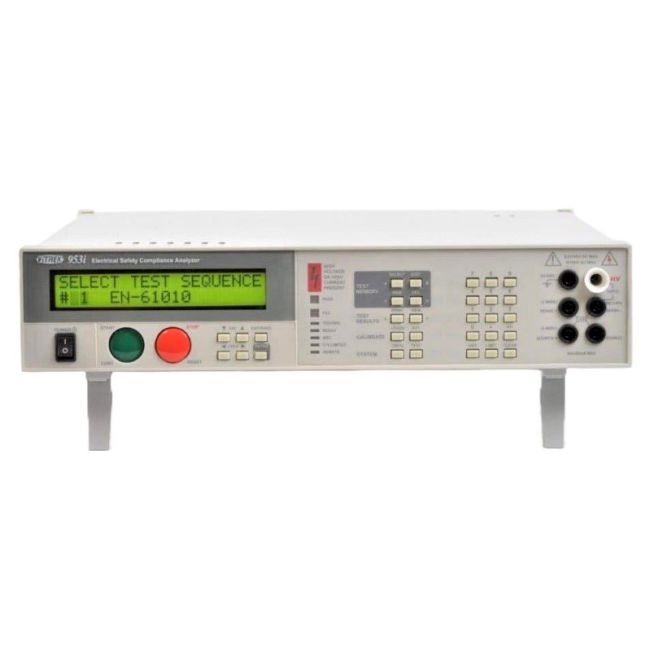

VITREK 953i Electrical Safety Compliance Analyzer
Vitrek built the 953i Electrical Safety Analyzer from the ground up with DSP technology €”to bring you the safest, fastest, most capable, feature rich hipot testers available. The 953i combines high output power, with a wide range of AC & DC voltage outputs and extremely low leakage cur measurement. Speed and power go hand in hand, the 6.5KVDC offers 50mA of source cur for DC Hipot €”providing the power you need to rapidly charge and discharge challenging DUTs.
When it comes to making critical leakage cur measurements, the Vitrek 953i delivers rock-solid resolution down to 100 pico-amps. This high resolution provides built-in insulation resistance measurement (IR) up to a Tera-ohm, add a 4-wire milli-ohmmeter with autoranging up to 100K ohm and an available 40 amp Ground Bond function. The 953i has the ability to directly control up to four 64 channel HV scanners, right out of the box. That is up to 256 test points and using a PC with Vitrek's QuickTest Pro software you can expand the count up to 640 test points. The Vitrek 953i Electrical Safety Compliance Analyzer is the result of this pursuit €”offering power, speed, accuracy and resolution that leave the others far behind.
Specifications for the VITREK 953i Electrical Safety Compliance Analyzer Include:
| AC Hipot | 20V -6KV |
| Max Std Current | 50mA |
| DC Hipot / IR | 30V - 11kV |
| MAX IR | 4T |
