Milmega AS0822-55
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz – 2.2 GHz |
| Output Power (CW) | 55 W |
| Gain | ≥ 50 dB |
| Gain Flatness | ± 2.5 dB |
| Input Power for Rated Output | ≤ 0 dBm |
| Input VSWR | 2.0:1 typical |
| Output VSWR | 2.0:1 typical |
| Harmonic Distortion | -20 dBc typical |
| Power Supply | 220 V AC, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Model | AS0822-55 |
|---|

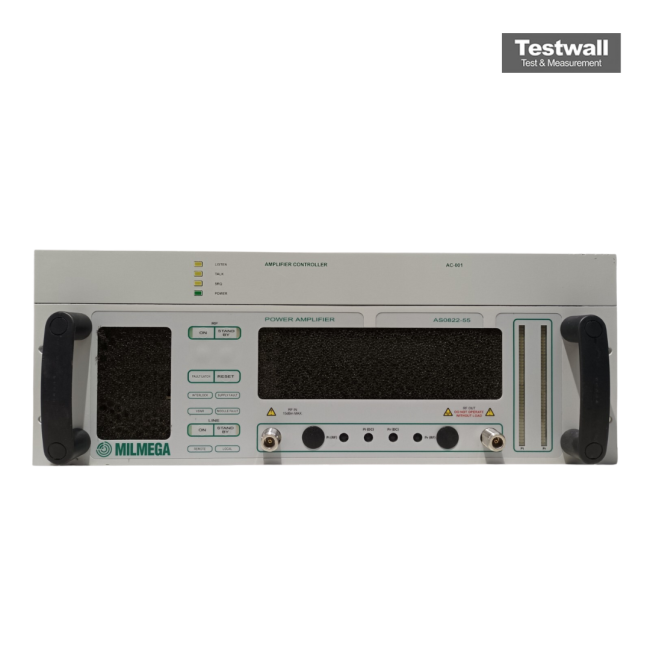

The Milmega AS0822-55 is a solid-state power amplifier covering 0.8–2.2 GHz, delivering 55W output power with 43dB gain. Its design ensures mismatch tolerance and unconditional stability, making it ideal for EMC testing applications. Compact and upgradeable, it offers a field-proven, reliable microwave solution for demanding environments.
Engineered for EMC testing, it operates efficiently even under poor and variable load conditions, such as those found with EMC antennas.
Testwall can supply the used Milmega AS0822-55 0.8-2.2 GHz 55 Watt Amplifier, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Milmega AS0822-55 0.8-2.2 GHz 55 Watt Amplifier.
