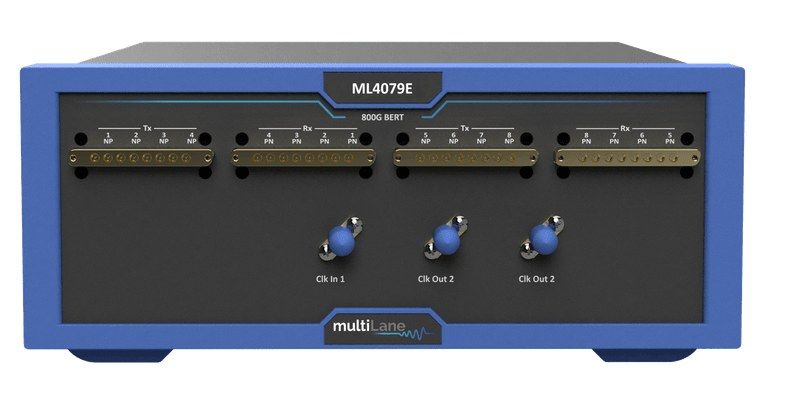

MultiLane ML4079E
| Attribute | Value |
|---|---|
| Channels | 8 |
| Modulation | NRZ and PAM4 |
| Data Rate | 23 to 29 and 46 to 58 GBaud |
| FEC | Hardware FEC: pre/post-FEC BER/SER, FEC margin |
| Patterns | PRBS13Q, SSPRQ, PRBS31Q, user-defined |
| Form Factor | Half-width 19-inch 2U benchtop |
The ML4079E is an 8-channel bit error rate tester for 800G (8 x 100 Gb/s) testing, operating at 23 to 29 and 46 to 58 GBaud PAM4 or NRZ. It includes real hardware FEC analysis with pre/post-FEC BER/SER and FEC margin per channel and per 100G/400G/800G block, plus SNR and histogram measurements and TX/RX equalisers.
Supports receiver stress and jitter tolerance testing when paired with the ML407-PAM jitter clock source; half-width 2U benchtop unit controlled via ThunderBERT GUI. Variants include ML4079EN (noise/jitter injection) and ML4079ELN (long reach, up to 66 GBaud).
Testwall can supply the used MultiLane ML4079E, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the MultiLane ML4079E.
