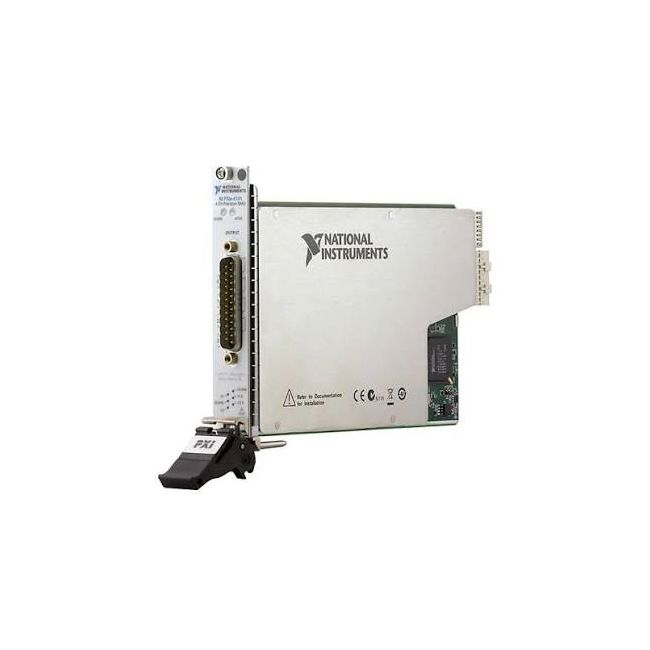

National Instruments PXIE-4141
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Voltage Output Range | -10 V to +10 V |
| Current Output Range | -100 mA to +100 mA |
| Voltage Measurement Range | -20 V to +20 V |
| Current Measurement Range | -100 mA to +100 mA |
| Voltage Output Accuracy | 2.5 mV |
| Current Output Accuracy | 100 µA |
| Maximum Power Output per Channel | 1 W |
| Form Factor | PXI Express (PXIe), 3U, 1-Slot |
| Operating System Compatibility | Windows, NI Linux Real-Time |
| Model | PXIE-4141 |
|---|
The National Instruments PXIe-4141 is a precision 4-channel Source Measure Unit designed for high-pin-count applications requiring accurate voltage and current sourcing. With 4-quadrant operation, it can source and sink up to 10 V and 100 mA on each channel. Its integrated remote (4-wire) sensing ensures exceptional measurement accuracy for sensitive tests.
Engineered for flexibility, the PXIe-4141 offers stable performance in both sourcing and sinking modes, making it ideal for component characterization, semiconductor testing, and complex system validation.
Testwall can supply the used National Instruments PXIe-4141, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXIe-4141.
