NH Research 9410-24
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 60 V DC |
| Output Current Range | 0 – 24 A |
| Output Power | 1440 W (1.44 kW) |
| Input Voltage | 208 V AC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Regulation Mode | Constant Voltage (CV) / Constant Current (CC) |
| Programming Interface | GPIB (IEEE-488) / RS-232 |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Operating Temperature | 0°C to 40°C |
NH Research 9410-24 Options:
- 9410-24 - HV - High Voltage output option (400V L-N range)
| Model | 9410-24 |
|---|

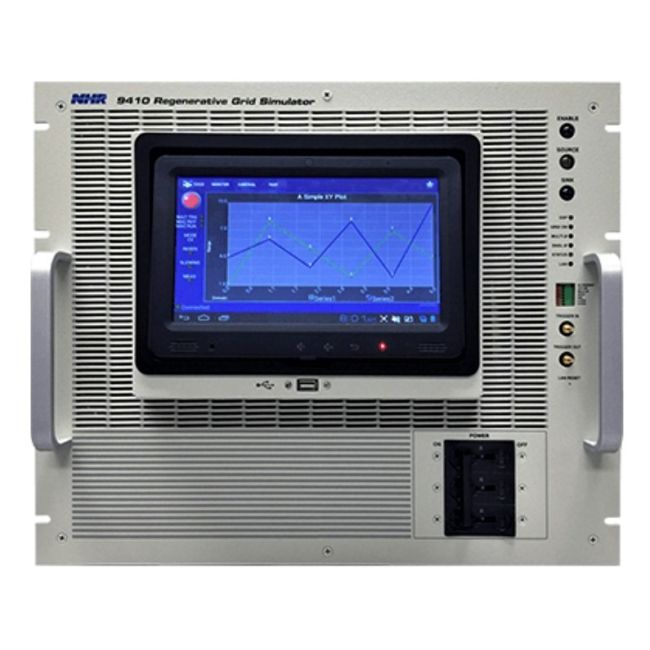

The NH Research 9410-24 Regenerative Grid Simulator is a 24kW, 48kVA fully-programmable, 4-quadrant AC source designed for IEEE 1547, UL 1741, LVRT and similar compliance testing. It supports programmable single, split, or three-phase AC modes, with per-output control of voltage, wave-shape, and phase. Each channel integrates a precision measurement system with 125k sample/sec waveform digitizer, ensuring detailed analysis of harmonics, transients, and AC disturbances. With scalable modules from 4 kW to 96 kW and selectable high/low voltage and current ranges, it delivers unmatched testing versatility.
Ideal for testing inverters, UPS, and AC devices in laboratory and production environments, the NH Research 9410-24 also regenerates sink power back to the facility, reducing energy costs. A 9” touch-panel interface, user-defined wave-shapes, and LabVIEW/SCPI compatibility make it highly adaptable for advanced testing needs.
Testwall can supply the used NH Research 9410-24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9410-24.
