Racal
Racal 6103B
Test Set
10 kHz to 3 GHz Frequency Range
1 Hz Frequency Resolution
±1 ppm (aging rate per year) Frequency Accuracy
50 Ohms Input Impedance
-20 dBm (typical, 10 kHz to 3 GHz) Sensitivity
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 3 GHz |
| Frequency Resolution | 1 Hz |
| Frequency Accuracy | ±1 ppm (aging rate per year) |
| Input Impedance | 50 Ohms |
| Sensitivity | -20 dBm (typical, 10 kHz to 3 GHz) |
| Maximum Input Level | +20 dBm (continuous) |
| Timebase Reference | Internal TCXO / External 10 MHz reference input |
| Display | LCD numeric display with frequency readout |
| Power Supply | 90–264 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Model | 6103B |
|---|

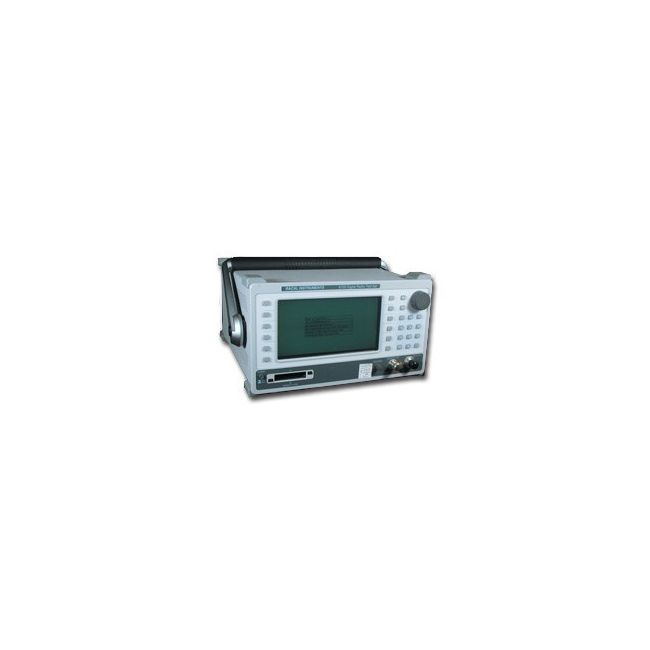

The Racal 6103B is an easy to use, fully integrated test Set. The 6103B is optimized for maintenance and servicing of GSM, DCS1800, and PCS 1900 mobile telephones. The 6103B offers automatic and manual receiver, Transmitterand Signaling tests.
