Rigol
Rigol DM3058E
5 1/2 Digit Digital Multimeter
5½ Digits Number of Digits
200mV, 2V, 20V, 200V, 1000V DC Voltage Range
0.015% + 0.005% (best accuracy) DC Voltage Accuracy
200mV, 2V, 20V, 200V, 750V AC Voltage Range
200Ω to 100MΩ (2-wire and 4-wire) Resistance Measurement
| Attribute | Value |
|---|---|
| Number of Digits | 5½ Digits |
| DC Voltage Range | 200mV, 2V, 20V, 200V, 1000V |
| DC Voltage Accuracy | 0.015% + 0.005% (best accuracy) |
| AC Voltage Range | 200mV, 2V, 20V, 200V, 750V |
| Resistance Measurement | 200Ω to 100MΩ (2-wire and 4-wire) |
| DC Current Range | 200µA, 2mA, 20mA, 200mA, 2A, 10A |
| Frequency Measurement Range | 20Hz to 1MHz |
| Reading Rate | Up to 150 readings per second |
| Interface | USB Device, USB Host, RS-232 |
| Display | 256×64 Dot Matrix LCD Display |
| Model | DM3058E |
|---|

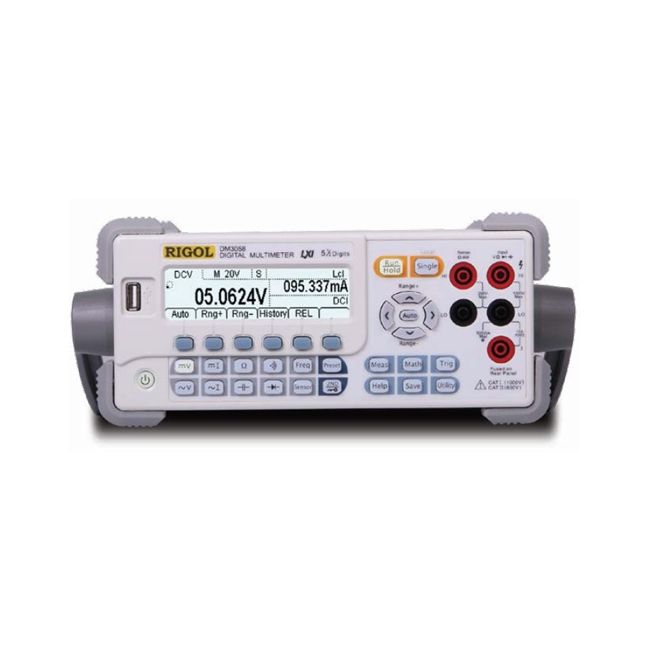

The Model DM3058 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3058 is a great bench tool for basic, reliable measurements regardless of your application or need.
