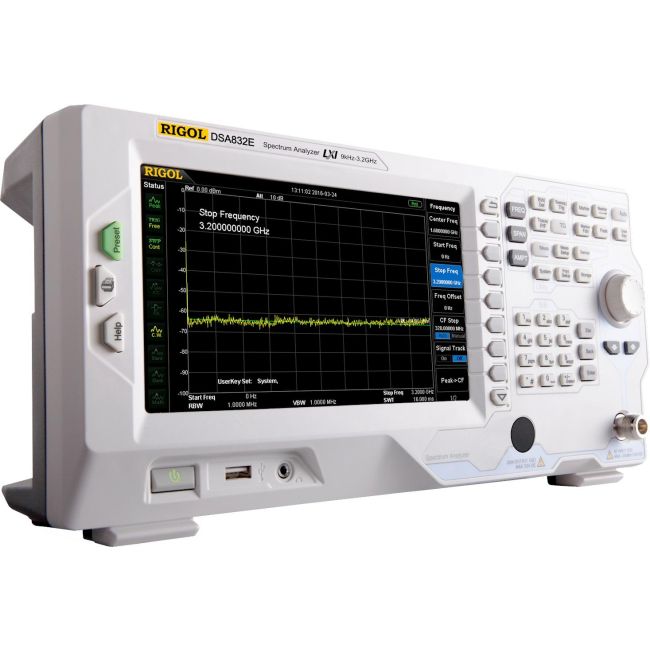

Rigol DSA832E
9kHz to 3.2 GHz Spectrum Analyser
9 kHz to 3.2 GHz Frequency Range
-161 dBm/Hz (Typical, with Preamplifier ON) Displayed Average Noise Level (DANL)
-98 dBc/Hz @ 10 kHz offset (Typical) Phase Noise
10 Hz to 1 MHz (1-3-10 steps) Resolution Bandwidth (RBW)
±0.7 dB (Typical) Total Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3.2 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (Typical, with Preamplifier ON) |
| Phase Noise | -98 dBc/Hz @ 10 kHz offset (Typical) |
| Resolution Bandwidth (RBW) | 10 Hz to 1 MHz (1-3-10 steps) |
| Total Amplitude Accuracy | ±0.7 dB (Typical) |
| Input Impedance | 50 Ω |
| Maximum Input Power | +30 dBm (Average Continuous Power) |
| Preamplifier | Built-in, 100 kHz to 3.2 GHz |
| Display | 10.1-inch WSVGA LCD (1024 × 600 resolution) |
| Connectivity / Interfaces | USB Host, USB Device, LAN (10/100Base-T), VGA |
Rigol DSA832E Options:
- DSA832E - PA-DSA832 - Preamplifier, 100 kHz to 3.2 GHz
- DSA832E - EMI-DSA800 - EMI Filter & Quasi-Peak Detector
- DSA832E - AMK-DSA800 - Advanced Measurement Kit
- DSA832E - VSWR-DSA800 - VSWR Measurement Kit
- DSA832E - Ultra Spectrum - DSA PC Software
- DSA832E - DSA832E-TG - Spectrum Analyzer 9 kHz to 3.2 GHz with Tracking Generator (factory installed)
| Model | DSA832E |
|---|
The Rigol DSA832E is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications. The very large display (20.3 cm / 8") of the Rigol DSA832E Spectrum Analyzer provides a resolution of 800x480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer. The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.
