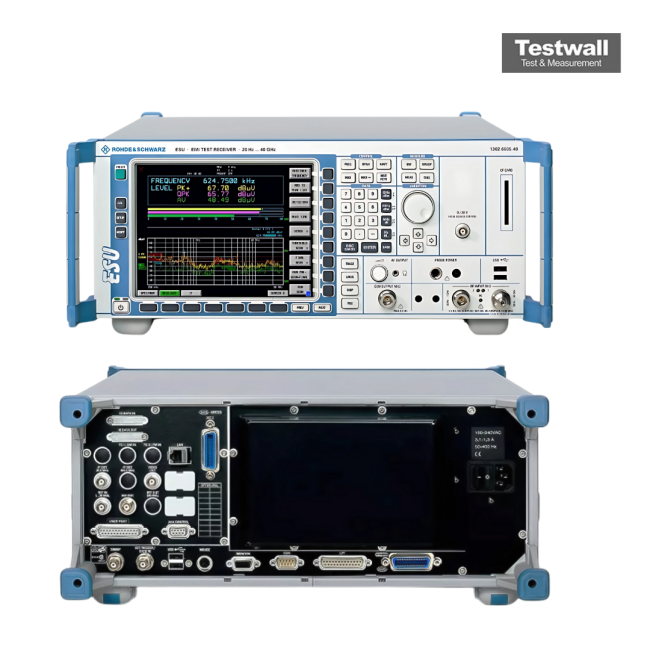

Rohde & Schwarz ESU26
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 26.5 GHz |
| Receiver Type | EMI Test Receiver |
| Resolution Bandwidth (RBW) | 10 Hz – 10 MHz (CISPR bandwidths: 200 Hz, 9 kHz, 120 kHz, 1 MHz) |
| Dynamic Range | Up to 110 dB |
| Display Range | 100 dB |
| Input Impedance | 50 Ω |
| Detectors | Peak, Quasi-Peak, RMS, Average, CISPR Average |
| Phase Noise | < –110 dBc (1 Hz) at 10 kHz carrier offset |
| Spurious Suppression | > 70 dBc |
| Standards Compliance | CISPR 16-1-1, MIL-STD-461, FCC, VDE, ANSI |
Rohde & Schwarz ESU26 Options:
- ESU26 - R&S FSU-B4 - OCXO, low aging / improved phase noise at 10 Hz carrier offset
- ESU26 - R&S FSU-B9 - Tracking Generator, 100 kHz to 3.6 GHz
- ESU26 - R&S FSP-B10 - External Generator Control
- ESU26 - R&S FSU-B12 - Output Attenuator, 0 dB to 70 dB, for R&S FSU-B9 (requires R&S FSU-B9)
- ESU26 - R&S ESU-B18 - Removable Hard Disk
- ESU26 - R&S ESU-B19 - Second Hard Disk for R&S ESU-B18 (requires R&S ESU-B18)
- ESU26 - R&S ESU-B24 - Low-Noise Preamplifier, 100 kHz to 26.5 GHz
- ESU26 - R&S ESU-K53 - Time Domain Scan (key code)
- ESU26 - R&S ESPIK50 - Triggered Scan for Coverage Measurements (key code)
| Model | ESU26 |
|---|
The Rohde & Schwarz ESU26 is a high-performance EMI test receiver and spectrum analyzer covering 20Hz to 26.5GHz. It is CISPR 16-compliant and meets all commercial and military standards for electromagnetic disturbance measurement. It features a standard 20 dB preamplifier up to 3.6 GHz, FFT-based time-domain scan for rapid evaluation, and supports simultaneous parallel IF analysis with three detectors including CISPR-Average, RMS-Average, and APD.
Ideal for timing analysis and fast measurement requirements, the ESU26 enhances EMI compliance testing with unmatched accuracy and speed.
Testwall can supply the used Rohde & Schwarz ESU26, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESU26.
