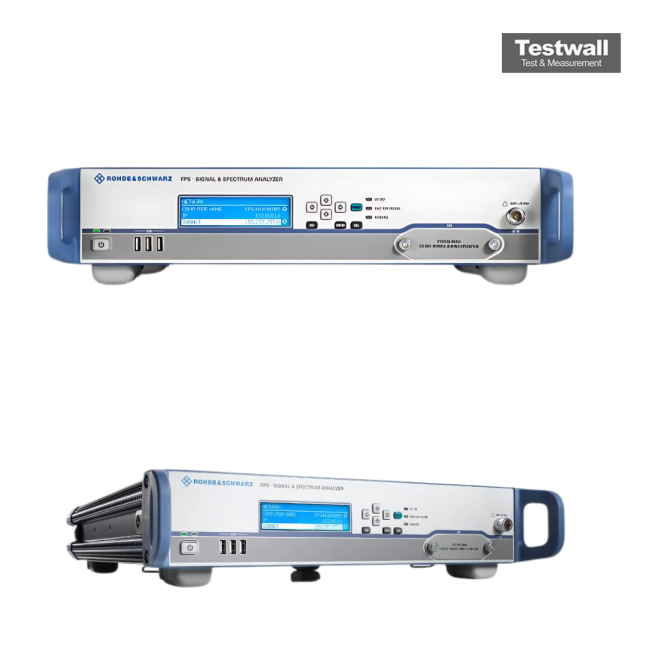

Rohde & Schwarz FPS4
10 Hz to 4 GHz Spectrum Analyser (Signal Analyser)
2 Hz to 4 GHz Frequency Range
-155 dBm (typical) at 1 GHz Display Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) Phase Noise
1 Hz to 3 MHz Resolution Bandwidth (RBW)
+30 dBm (1 W) Maximum Input Power
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 4 GHz |
| Display Noise Level (DANL) | -155 dBm (typical) at 1 GHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Maximum Input Power | +30 dBm (1 W) |
| Input Impedance | 50 Ohm |
| Amplitude Measurement Range | -155 dBm to +30 dBm |
| Third-Order Intercept Point (TOI) | +15 dBm (typical) at 1 GHz |
| Display | 10.1-inch WXGA touchscreen display (1366 x 768 pixels) |
| Interface / Connectivity | LAN (1000BASE-T), USB, HDMI, optional GPIB |
Rohde & Schwarz FPS4 Options:
- FPS4 - B0 - Rear RF Input
- FPS4 - B4 - OCXO Reference Frequency
- FPS4 - B10 - External Generator Control
- FPS4 - B18 - Spare Solid-State-Drive
- FPS4 - B22 - RF Preamplifier, 9 kHz to 7 GHz
- FPS4 - B25 - Electronic Attenuator, 1 dB steps
- FPS4 - B40 - 40 MHz Analysis Bandwidth
- FPS4 - B160 - 160 MHz Analysis Bandwidth
- FPS4 - B478 - 19" Rack Adapter, pre-installed ex-factory
- FPS4 - K6 - Pulse Measurements
- FPS4 - K7 - Analog Modulation Analysis for AM, FM, φM
- FPS4 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FPS4 - K18 - Power Amplifier Measurements
- FPS4 - K30 - Noise Figure Measurements
- FPS4 - K33 - Security Write Protection of solid state drive
- FPS4 - K40 - Phase Noise Measurements
- FPS4 - K70 - Vector Signal Analysis
- FPS4 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FPS4 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FPS4 - K76 - TD-SCDMA BS Measurements
- FPS4 - K77 - TD-SCDMA UE Measurements
- FPS4 - K82 - CDMA2000® BS Measurements
- FPS4 - K83 - CDMA2000® MS Measurements
- FPS4 - K84 - 1xEV-DO BS Measurements
- FPS4 - K85 - 1xEV-DO MS Measurements
- FPS4 - K91 - WLAN 802.11a/b/g Measurements
- FPS4 - K91n - WLAN 802.11n Measurements
- FPS4 - K91p - WLAN 802.11p Measurements
- FPS4 - K91ac - WLAN 802.11ac Measurements
- FPS4 - K100 - EUTRA/LTE FDD Downlink Measurements
- FPS4 - K101 - EUTRA/LTE FDD Uplink Measurements
- FPS4 - K102 - EUTRA/LTE Downlink MIMO Measurements
- FPS4 - K104 - EUTRA/LTE TDD Downlink Measurements
- FPS4 - K105 - EUTRA/LTE TDD Uplink Measurements
| Model | FPS4 |
|---|
The Rohde and Schwarz FSH4 Spectrum Analyzer operates within a frequency range of 9 kHz to 3.6 GHz, offering high-resolution analysis for RF and microwave signals. Its compact design supports both field and laboratory use.
Engineered for performance and portability, this analyzer is ideal for maintenance, installation, and service tasks, delivering reliable data across diverse testing environments.
Testwall can supply the used Rohde and Schwarz FSH4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSH4.
