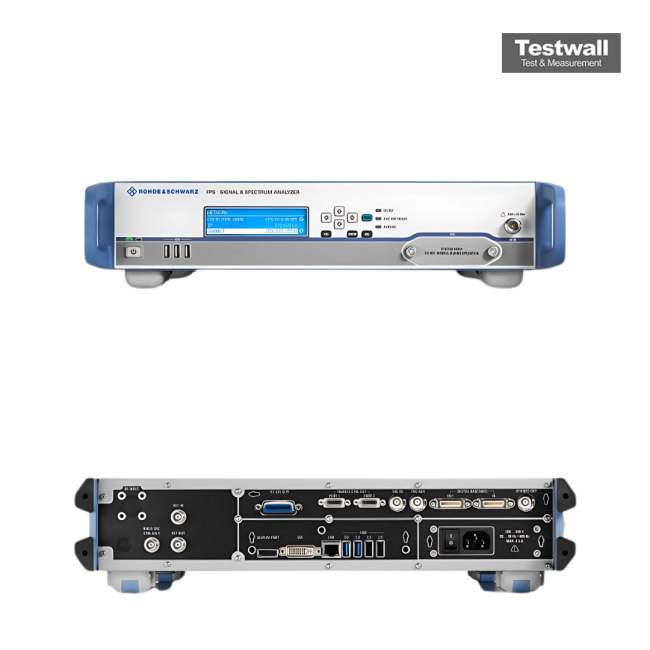

Rohde & Schwarz FPS40
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 40 GHz |
| Displayed Average Noise Level (DANL) | -165 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -114 dBc/Hz at 1 GHz carrier, 10 kHz offset (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | Greater than 78 dB (TOI-based, typ. at 1 GHz) |
| Third-Order Intercept (TOI) | +20 dBm (typ.) at 1 GHz |
| Sweep Time | 1 ms to 16000 s (span > 0 Hz) |
| Input Impedance | 50 Ohm |
| Preamplifier | Built-in low-noise preamplifier, switchable, covering full frequency range up to 40 GHz |
Rohde & Schwarz FPS40 Options:
- FPS40 - B0 - Rear RF Input
- FPS40 - B4 - OCXO Reference Frequency
- FPS40 - B10 - External Generator Control
- FPS40 - B18 - Spare Solid-State-Drive
- FPS40 - B11 - YIG Preselector Bypass
- FPS40 - B22 - RF Preamplifier, 9 kHz to 7 GHz
- FPS40 - B25 - Electronic Attenuator, 1 dB steps
- FPS40 - B24 - RF Preamplifier, 9 kHz to 40 GHz
- FPS40 - B28V - Noise Source Control 0/28 V
- FPS40 - B40 - 40 MHz Analysis Bandwidth
- FPS40 - B160 - 160 MHz Analysis Bandwidth
- FPS40 - K6 - Pulse Measurements
- FPS40 - K7 - Analog Modulation Analysis for AM, FM, φM
- FPS40 - K30 - Noise Figure Measurements
- FPS40 - K40 - Phase Noise Measurements
- FPS40 - K33 - Security Write Protection of solid state drive
- FPS40 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FPS40 - K18 - Power Amplifier Measurements
- FPS40 - K70 - Vector Signal Analysis
- FPS40 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FPS40 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FPS40 - K76 - TD-SCDMA BS Measurements
- FPS40 - K77 - TD-SCDMA UE Measurements
- FPS40 - K82 - CDMA2000® BS Measurements
- FPS40 - K83 - CDMA2000® MS Measurements
- FPS40 - K84 - 1xEV-DO BS Measurements
- FPS40 - K85 - 1xEV-DO MS Measurements
- FPS40 - K91 - WLAN 802.11a/b/g Measurements
- FPS40 - K91n - WLAN 802.11n Measurements
- FPS40 - K91p - WLAN 802.11p Measurements
- FPS40 - K91ac - WLAN 802.11ac Measurements
- FPS40 - K100 - EUTRA/LTE FDD Downlink Measurements
- FPS40 - K101 - EUTRA/LTE FDD Uplink Measurements
- FPS40 - K102 - EUTRA/LTE Downlink MIMO Measurements
- FPS40 - K104 - EUTRA/LTE TDD Downlink Measurements
- FPS40 - K105 - EUTRA/LTE TDD Uplink Measurements
- FPS40 - B478 - 19" Rack Adapter, pre-installed ex-factory
| Model | FPS40 |
|---|
The Rohde and Schwarz FPS40 Spectrum Analyzer offers a frequency range up to 40 GHz and signal analysis bandwidth up to 160 MHz, with only 0.4 dB level uncertainty below 7 GHz. It delivers outstanding performance with –110 dBc (1 Hz) phase noise, –155 dBm DANL at 1 GHz, and +15 dBm TOI. Measurement applications include GSM/EDGE, WCDMA/HSPA+, LTE, WLAN, and vector signal analysis.
Designed for high-throughput environments, the FPS40 ensures efficient production testing with advanced connectivity and a removable hard disk for enhanced security. It is also future-ready for evolving standards.
Testwall can supply the used Rohde and Schwarz FPS40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FPS40.
