Rohde & Schwarz
Rohde & Schwarz FSC3
9 kHz to 3 GHz Spectrum Analyser (Signal Analyser)
100 kHz to 3 GHz Frequency Range
100 Hz to 1 MHz Display Resolution Bandwidth (RBW)
< -95 dBc/Hz at 10 kHz offset (1 GHz carrier) Phase Noise
100 dB Display Dynamic Range
-20 dBm to +20 dBm Reference Level Range
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Display Resolution Bandwidth (RBW) | 100 Hz to 1 MHz |
| Phase Noise | < -95 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Display Dynamic Range | 100 dB |
| Reference Level Range | -20 dBm to +20 dBm |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +20 dBm (continuous), +33 dBm (peak, < 10 µs) |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels |
| Power Supply | AC 100 V to 240 V, 50/60 Hz; also operable via battery pack |
| Dimensions (W x H x D) | 270 mm x 195 mm x 75 mm (approximately 10.6 x 7.7 x 3.0 inches) |
Rohde & Schwarz FSC3 Options:
- FSC3 - 1314.3006.03 - Spectrum Analyzer, 9 kHz to 3 GHz
- FSC3 - 1314.3006.13 - Spectrum Analyzer, 9 kHz to 3 GHz, with tracking generator
- FSC6 - 1314.3006.06 - Spectrum Analyzer, 9 kHz to 6 GHz
- FSC6 - 1314.3006.16 - Spectrum Analyzer, 9 kHz to 6 GHz, with tracking generator
- FSC3 - FSC-B22 - Preamplifier, 100 kHz to 3 GHz/6 GHz (for the R&S FSC3/6)
| Model | FSC3 |
|---|

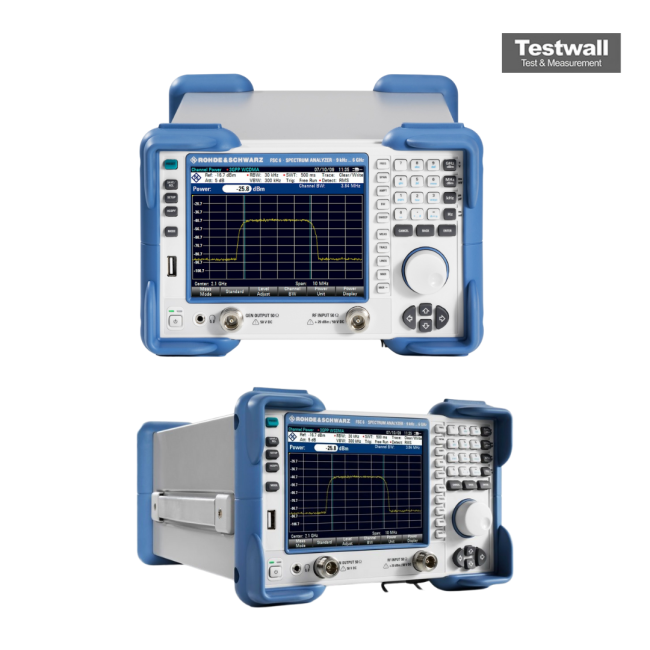

The Rohde and Schwarz FSC3 is a compact and cost-effective professional spectrum analyser offering a frequency range from 9kHz to 3GHz, equipped with a tracking generator and excellent RF performance for standard measurements
Its general-purpose presets, LAN and USB connectivity, low power consumption, and small footprint make it ideal for service and maintenance tasks
Testwall can supply the used Rohde and Schwarz FSC3, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSC3
