Rohde & Schwarz HMO724
| Attribute | Value |
|---|---|
| Bandwidth | 70 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 13 pF |
| Display | 6.5-inch VGA color LCD (640 x 480 pixels) |
| Interfaces | USB, Ethernet (LAN), VGA |
| Mixed Signal Option | Optional MSO upgrade with 8 digital channels (HO3508) |
Rohde & Schwarz HMO724 Options:
- HMO1002 - HOO572 - Bandwidth upgrade 50MHz to 70MHz
- HMO1002 - HOO512 - Bandwidth upgrade 50MHz to 100MHz
- HMO1002 - HOO712 - Bandwidth upgrade 70MHz to 100MHz
- HMO1202 - HOO312 - Bandwidth upgrade 100MHz to 200MHz
- HMO1202 - HOO313 - Bandwidth upgrade 100MHz to 300MHz
- HMO1202 - HOO323 - Bandwidth upgrade 200MHz to 300MHz
- HMO - HOO10 - I2C, SPI, UART/RS-232 on analog and logic channels
- HMO - HOO11 - I2C, SPI, UART/RS-232 on all analog channels
- HMO - HOO12 - CAN and LIN on analog and logic channels
| Model | HMO724 |
|---|

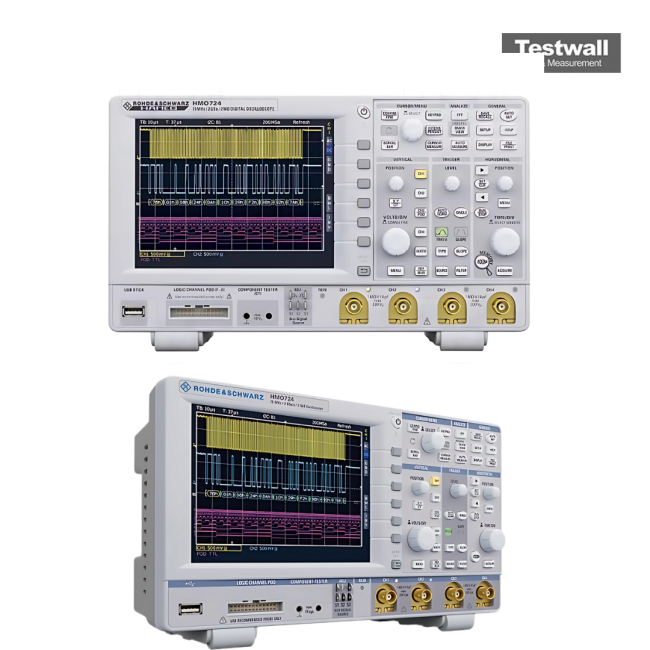

The Rohde & Schwarz HMO724 is a 70 MHz, 4-channel digital oscilloscope featuring up to 8 logic channels via MSO option HO3508. It offers a 2 GSa/s real-time sampling rate, 2 MPts memory, 6.5" VGA TFT display, and vertical sensitivity from 1 mV/div to 10 V/div. With USB, RS-232, DVI connectivity, and included RT-ZP03 probes and software, it ensures advanced testing performance.
It includes serial bus trigger and hardware-accelerated decode (I2C, SPI, UART, CAN/LIN), memory zoom up to 50,000:1, and a wide trigger mode range for versatile applications.
Testwall can supply the used Rohde & Schwarz HMO724, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz HMO724.
