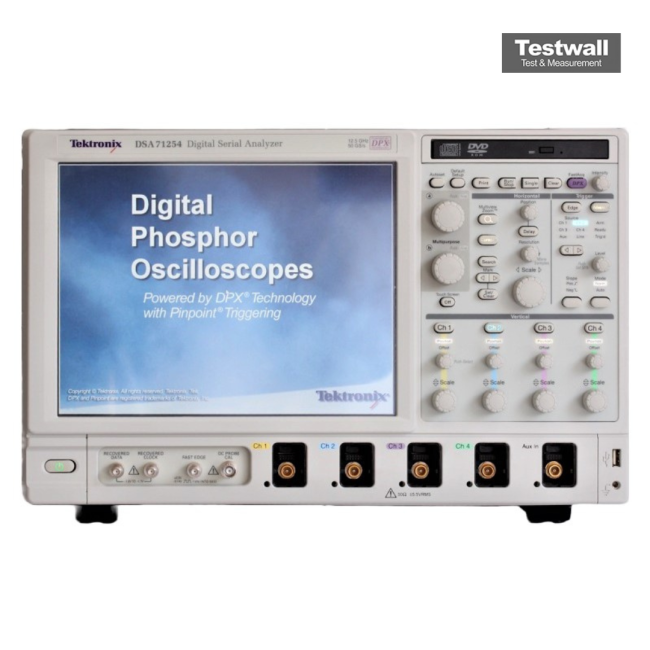

Tektronix DSA71254
| Attribute | Value |
|---|---|
| Bandwidth | 12.5 GHz |
| Sample Rate | 50 GS/s |
| Number of Channels | 4 |
| Record Length | Up to 250 Megapoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 28 ps |
| Input Impedance | 50 Ω |
| Display | 12.1-inch TFT color LCD |
| Operating System | Windows XP Professional |
| Connectivity | USB, GPIB, LAN (10/100/1000Base-T Ethernet) |
Tektronix DSA71254 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA71254 - 2XL - Extended record length
- DSA71254 - 5XL - Extended record length
- DSA71254 - 10XL - Extended record length
- DSA71254 - 20XL - Extended record length
- DSA71254 - 50XL - Extended record length
- DSA71254 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA71254 - DJAN - DPOJET jitter and noise analysis
- DSA71254 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA71254 - DDRA - DDR memory bus analysis
- DSA71254 - ST6G - 6.25 Gb/s serial pattern trigger
- DSA71254 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA71254 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA71254 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA71254 - SR-USB - USB 2.0 serial triggering and analysis
- DSA71254 - SR-PCIE - PCI Express serial analysis
- DSA71254 - SR-810B - 8b/10b serial analysis
- DSA71254 - MTH - Mask testing
- DSA71254 - LT - Limit testing
- DSA71254 - VET - Visual trigger
- DSA71254 - ASM - Advanced search and mark
The Tektronix DSA71254 is a 4-channel Digital Serial Analyzer with 12.5 GHz matched analog bandwidth, 50 GS/s real-time sampling across all channels, and ultra-deep memory up to 200 M points. It features 34 ps rise time (10‑90%) and a 12.1″ XGA touchscreen for high-resolution signal visualization.
This analyzer excels in compliance validation, high-speed serial link debugging, and detailed signal integrity analysis, making it ideal for advanced R&D applications.
Testwall can supply the used Tektronix DSA71254, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA71254
