Rohde & Schwarz HMP4030
| Attribute | Value |
|---|---|
| Number of Channels | 3 |
| Output Voltage Range | 0 – 32 V per channel |
| Output Current Range | 0 – 10 A per channel |
| Total Output Power | 384 W maximum |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Line Regulation (Voltage) | < 0.5 mV |
| Interfaces | USB, RS-232, and optional GPIB/Ethernet (HO732) |
| Display | Graphical color TFT LCD display |
| Operating Temperature Range | 0 °C to 40 °C |
Rohde & Schwarz HMP4030 Options:
- HMP4030 - R&S HO720 - Dual Interface (RS-232/USB)
- HMP4030 - R&S HO740 - IEEE488 (GPIB) Interface
- HMP4030 - R&S HZP91 - 19" Rack Adapter, 4 HU for R&S HMP4030/HMP4040
| Model | HMP4030 |
|---|

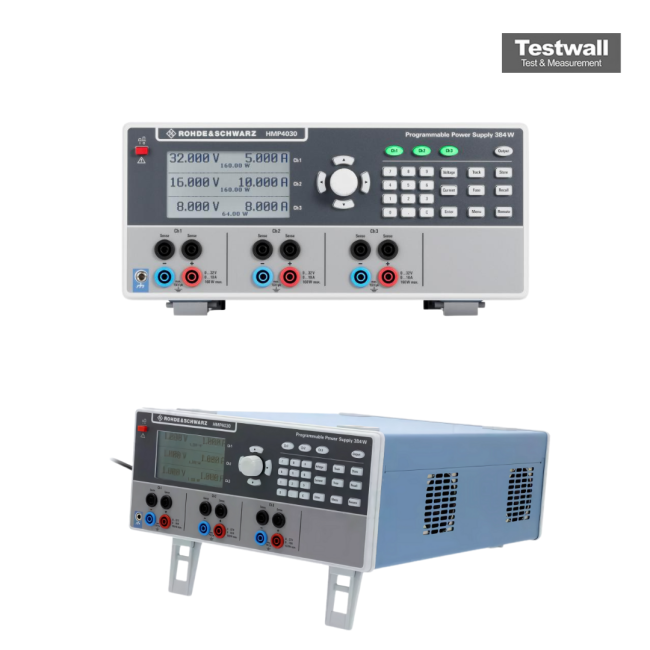

The Rohde and Schwarz HMP4030 is a high-performance, three-channel power supply offering up to 384W total output with galvanically isolated, floating channels sharing the same voltage range. It features a 240x64 pixel LCD, constant voltage/current modes, and advanced protection functions.
Ideal for laboratories, test systems, and ATE applications, it supports parallel/serial operations, EasyArb functions, and convenient save/recall settings for efficiency and safety.
Testwall can supply the used Rohde and Schwarz HMP4030, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz HMP4030.
