Rohde & Schwarz NRP-Z27
| Attribute | Value |
|---|---|
| Sensor Type | thermocouple, with RF output |
| Frequency Range | DC to 18 GHz |
| Interfaces | USB (full speed) |
| Dimensions | 48 × 50 × 250 mm |
| Weight | <0.7 kg |
| Power Range | 4 µW to 400 mW (-24 to +26 dBm) |
| Maximum Power | 0.5 W average, 30 W peak (1 µs) |
| SWR | <1.15 (to 2 GHz), <1.18 (to 4.2 GHz), <1.23 (to 8 GHz), <1.25 (to 12.4 GHz), <1.35 (to 18 GHz) |
| Connector | Type-N male input, 3.5 mm male output |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters

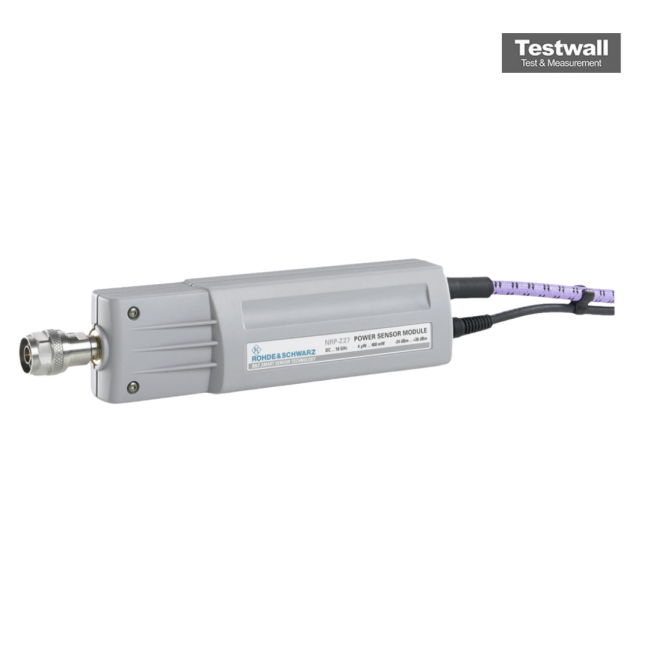

The Rohde and Schwarz NRP-Z27 is a Power Sensor Module covering a frequency range from DC to 18 GHz. Designed with an N-type connector, it supports a measurement range from -24 dBm to +26 dBm. It transforms FSMR receivers into precision power meters offering a dynamic range from -115 dBm to +30 dBm. This sensor is optimized for high-accuracy reference measurements during level calibration procedures using the R&S FSMR receiver and can also be remotely controlled via USB from R&S FSMR, NRX, or any compatible Windows PC.
Ideal for use in RF and microwave power measurements, the NRP-Z27 delivers stable and reliable results, acting as a reference standard in demanding test setups and calibration environments.
Testwall can supply the used Rohde and Schwarz NRP-Z27, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP-Z27.
