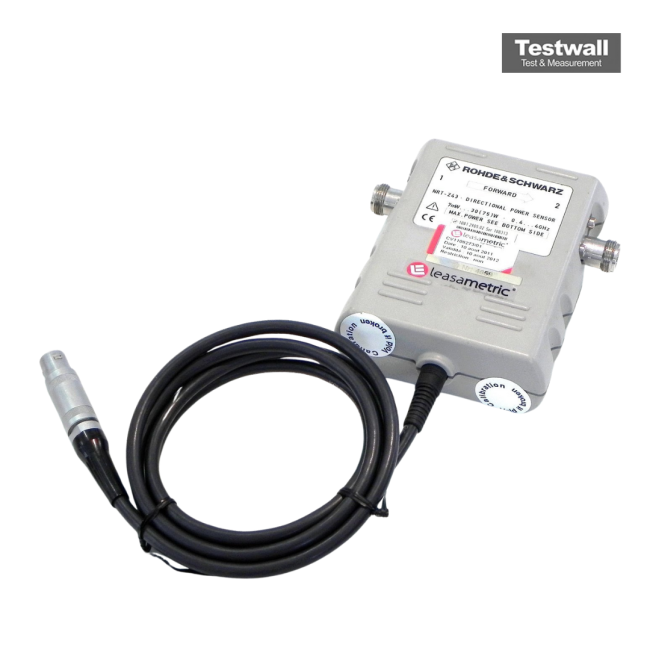

Rohde & Schwarz NRT-Z43
| Attribute | Value |
|---|---|
| Frequency Range | 200 MHz to 4 GHz |
| Power Measurement Range | -44 dBm to +44 dBm (40 nW to 25 W) |
| Directional Power Measurement | Forward and reflected power measurement capability |
| Connector Type | N-type connector (50 Ω) |
| Impedance | 50 Ω |
| Maximum Continuous Power | 25 W |
| VSWR Measurement | Voltage Standing Wave Ratio (VSWR) measurement supported |
| Compatible Instrument | Rohde & Schwarz NRT Power Reflection Meter |
| Measurement Uncertainty | ±0.5 dB (typical) |
| Operating Temperature Range | 0 °C to +55 °C |
| Model | NRT-Z43 |
|---|
The Rohde & Schwarz NRT-Z43 directional power sensors operate as independent, calibrated instruments, eliminating the need for a base unit. They measure both forward and reverse power while determining parameters such as load matching. Featuring excellent intermodulation, low insertion loss, and precise matching, they ensure accurate performance.
Designed to handle digitally modulated signals, the NRT-Z43 sensors accurately measure average (RMS) power, regardless of signal envelope, delivering a wide 35–40 dB measurement range.
Testwall can supply the used Rohde & Schwarz NRT-Z43, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRT-Z43.
