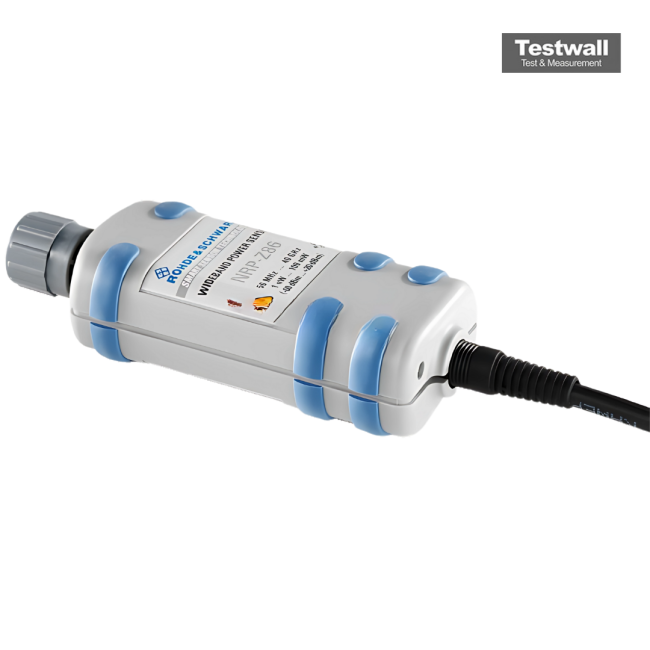

Rohde & Schwarz NRP-Z86
| Attribute | Value |
|---|---|
| Connector | 2.4 mm male |
| Interfaces | USB (full speed) |
| Sensor Type | peak and average (diode), wideband |
| Frequency Range | 50 MHz to 40 GHz (model .40), 50 MHz to 44 GHz (model .44) |
| Power Range | 1 nW to 100 mW (-60 to +20 dBm) |
| Maximum Power | 200 mW average, 1 W peak (1 µs) |
| SWR | <1.16 (to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 18 GHz), <1.30 (to 26.5 GHz), <1.35 (to 40 GHz), <1.40 (to 44 GHz) |
| Compatible Meters | NRP2, NRX, NRP-Z4 USB adapter (PC), ODU Mini-Snap R&S instruments |
Compatible power meters
Rohde & Schwarz NRP-Z86 Options:
- NRP-Z86 - .40 - 50 MHz to 40 GHz, 2.40 mm connector
- NRP-Z86 - .44 - 50 MHz to 44 GHz, 2.40 mm connector
The Rohde & Schwarz NRP-Z86 Power Sensor operates across a wide frequency range from 50 MHz to 40 or 44 GHz, measuring power levels from -60 dBm to +20 dBm with high precision. This sensor is ideal for high-frequency and microwave applications where accurate and real-time power measurement is essential.
With a broad dynamic range and versatile measurement capabilities, the NRP-Z86 ensures optimal performance in advanced RF environments, making it perfect for laboratories, production lines, and system integration.
Testwall can supply the used Rohde & Schwarz NRP-Z86, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRP-Z86.
