Rohde & Schwarz NRV-Z6
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Measurement Range | -67 dBm to +20 dBm |
| Connector Type | N-type (50 Ω) |
| Sensor Type | Thermocouple Power Sensor |
| Measurement Uncertainty | ±0.9 dB |
| SWR (Standing Wave Ratio) | ≤ 1.15 (10 MHz to 2 GHz), ≤ 1.25 (2 GHz to 18 GHz) |
| Operating Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | -40 °C to +70 °C |
| Compatible Instruments | Rohde & Schwarz NRV, NRVS, and NRVD Power Meters |
| Calibration Factor | Supplied on calibration certificate and stored in sensor memory |
Rohde & Schwarz NRV-Z6 Options:
- NRV-Z1 - 0828.3018.02 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 18 GHz (1.3 m cable)
- NRV-Z1 - 0828.3018.03 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 18 GHz, with 5 m cable
- NRV-Z3 - 0828.3418.02 - High-Sensitivity Diode Sensor, 13 mW, 75 Ω, 2.5 GHz (1.3 m cable)
- NRV-Z3 - 0828.3418.03 - High-Sensitivity Diode Sensor, 13 mW, 75 Ω, 2.5 GHz, with 5 m cable
- NRV-Z4 - 0828.3618.02 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 6 GHz (1.3 m cable)
- NRV-Z4 - 0828.3618.03 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 6 GHz, with 5 m cable
- NRV-Z6 - 0828.5010.03 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 26.5 GHz
- NRV-Z15 - 1081.2305.02 - High-Sensitivity Diode Sensor, 20 mW, 50 Ω, 40 GHz
- NRV-Z2 - 0828.3218.02 - Medium-Sensitivity Diode Sensor, 500 mW, 50 Ω, 18 GHz (1.3 m cable)
- NRV-Z2 - 0828.3218.03 - Medium-Sensitivity Diode Sensor, 500 mW, 50 Ω, 18 GHz, with 5 m cable
- NRV-Z5 - 0828.3818.02 - Medium-Sensitivity Diode Sensor, 500 mW, 50 Ω, 6 GHz (1.3 m cable)
- NRV-Z5 - 0828.3818.03 - Medium-Sensitivity Diode Sensor, 500 mW, 50 Ω, 6 GHz, with 5 m cable
- NRV-Z51 - 0857.9004.02 - Thermal Power Sensor, 100 mW, 50 Ω, 18 GHz
- NRV-Z51 - 0857.9004.04 - Thermal Power Sensor, 100 mW, 50 Ω, 18 GHz, with 3 m cable, thermally insulated
- NRV-Z52 - 0857.9204.02 - Thermal Power Sensor, 100 mW, 50 Ω, 26.5 GHz
- NRV-Z53 - 0858.0500.02 - Thermal Power Sensor, 10 W, 50 Ω, 18 GHz
- NRV-Z54 - 0858.0800.02 - Thermal Power Sensor, 30 W, 50 Ω, 18 GHz
- NRV-Z55 - 1081.2005.02 - Thermal Power Sensor, 100 mW, 50 Ω, 40 GHz
- NRV-Z31 - 0857.9604.02 - Peak Power Sensor, 20 mW, 50 Ω, 6 GHz – Standard model (Model .02)
- NRV-Z31 - 0857.9604.03 - Peak Power Sensor, 20 mW, 50 Ω, 6 GHz – High-speed model (Model .03)
- NRV-Z31 - 0857.9604.04 - Peak Power Sensor, 20 mW, 50 Ω, 6 GHz – TDMA model (Model .04)
- NRV-Z32 - 1031.6807.04 - Peak Power Sensor, 2 W, 50 Ω, 6 GHz – TDMA model (Model .04)
- NRV-Z32 - 1031.6807.05 - Peak Power Sensor, 2 W, 50 Ω, 6 GHz – Universal model (Model .05)
- NRV-Z33 - 1031.6507.03 - Peak Power Sensor, 20 W, 50 Ω, 6 GHz – High-speed model (Model .03)
- NRV-Z33 - 1031.6507.04 - Peak Power Sensor, 20 W, 50 Ω, 6 GHz – TDMA model (Model .04)
- NRVC - 1109.0500.02 - Calibration Kit for Power Sensors, 1 µW to 100 mW, DC to 18 GHz
- NRVC-B1 - 1109.1007.02 - Verification Set for NRVC
- NRVC-B2 - 1109.1207.02 - Accessory Set for Linearity Measurements
| Model | NRV-Z6 |
|---|

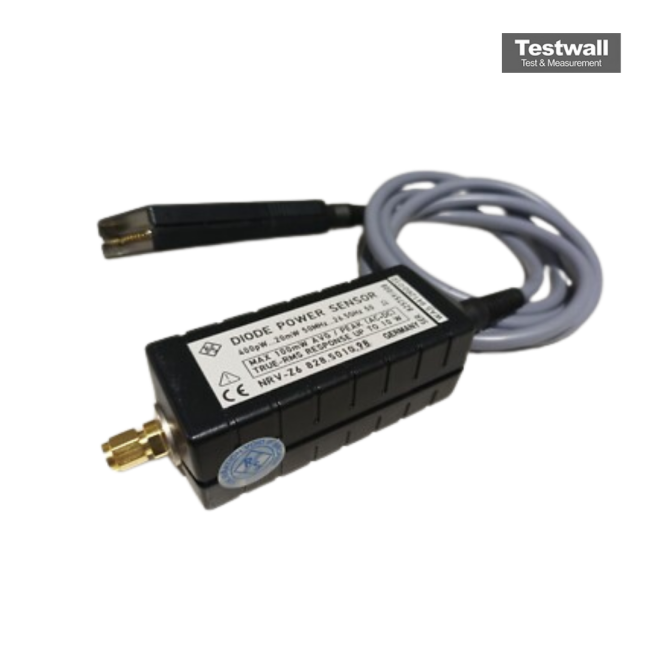

The Rohde & Schwarz NRV-Z6 is a high-precision power sensor designed for RF and microwave applications. It operates across a frequency range of 50 MHz to 26.5 GHz and handles power levels from 400 pW to 20 mW. With a 50 Ohm impedance and a PC 3.5 mm male connector, this sensor ensures precise measurements and stability. It includes a 1.3-meter (4 ft) cable for flexible usage.
Ideal for lab and field use, the NRV-Z6 allows for reliable RF power measurements with consistent accuracy across a wide frequency spectrum.
Testwall can supply the used Rohde & Schwarz NRV-Z6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRV-Z6.
