Keysight (Agilent) E8486A
| Attribute | Value |
|---|---|
| Sensor Type | diode, average, waveguide |
| Connector | WR-12 waveguide (UG-387/U) |
| Dimensions | 38 × 60 × 199 mm |
| Weight | 0.4 kg |
| Frequency Range | 60 to 90 GHz (Opt. 201: 54 to 95 GHz) |
| Power Range | -30 to +20 dBm (Opt. 100), -60 to +20 dBm (Opt. 200/201) |
| Maximum Power | 200 mW average, 40 W peak (Opt. 100), 1 W peak (Opt. 200) |
| SWR | 1.06 max. (Opt. 100), 1.28 max. (Opt. 200) |
| Compatible Meters | EPM N1913A/N1914A, N1913B/N1914B, EPM-P E4416A/E4417A, P-Series N1911A/N1912A |
Compatible power meters
E4418B · E4419B · E4416A · E4417A · N1913A · N1914A · N1911A · N1912A
Keysight (Agilent) E8486A Options:
- E8486A - 100 - E-band power sensor, 60 to 90 GHz, -30 to +20 dBm
- E8486A - 200 - E-band power sensor, 60 to 90 GHz, -60 to +20 dBm
- E8486A - 201 - E-band power sensor, 54 to 95 GHz, -60 to +20 dBm

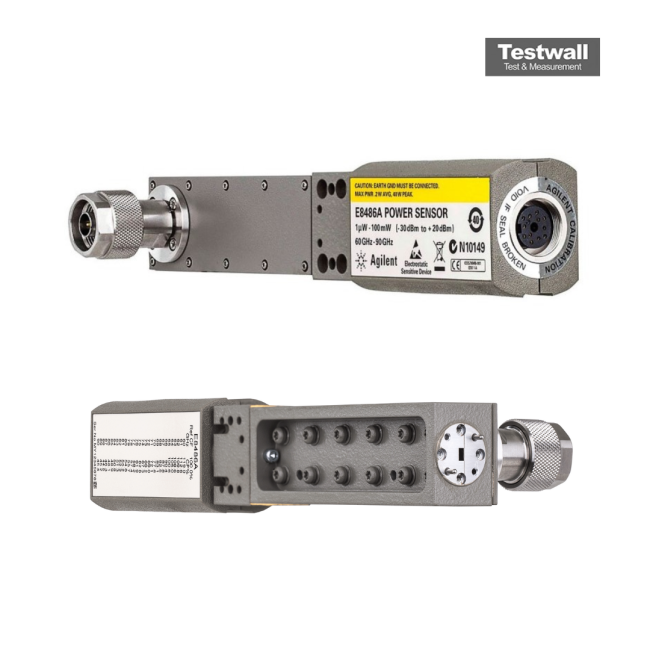

Keysight (Agilent) E8486A Waveguide Power Sensor
Covering E-band spectrum, the Keysight E8486A waveguide power sensors offer best SWR, high reliability and low loss, and come with a 50 MHz calibration port to reduce measurement uncertainties. Keysight waveguide power sensors are fully compatible with Keysight EPM (E4418B/19B, N1913A/14A), EPM-P (E4416A/17A) and P-Series (N1911A/12A) power meters. To minimize any measurement uncertainty caused by mismatch, Keysight waveguide sensors offer excellent SWR of 1.06 (> 30 dB return loss).
For easy calibration with the power meter, Keysight E8486A waveguide power sensors incorporate a 50 MHz calibration port. This eliminates the variance in making measurements with diffe meter/sensor combinations and the uncertainties due to temperature changes. Keysight waveguide sensors use the same proven Modified Barrier Integrated Diode (MBID) technology found in other Keysight sensors, and always operates in the square-law characteristic for true-average detection.
Specifications for the Keysight (Agilent) E8486A Waveguide Power Sensor Include:
| Frequency Range | 60 to 90 GHz |
| Power Range | -30 to +20 dBm |
| Max power | 200 mW avg |
| Connector type | UG-387/U Flange, EIA WR-12 |
