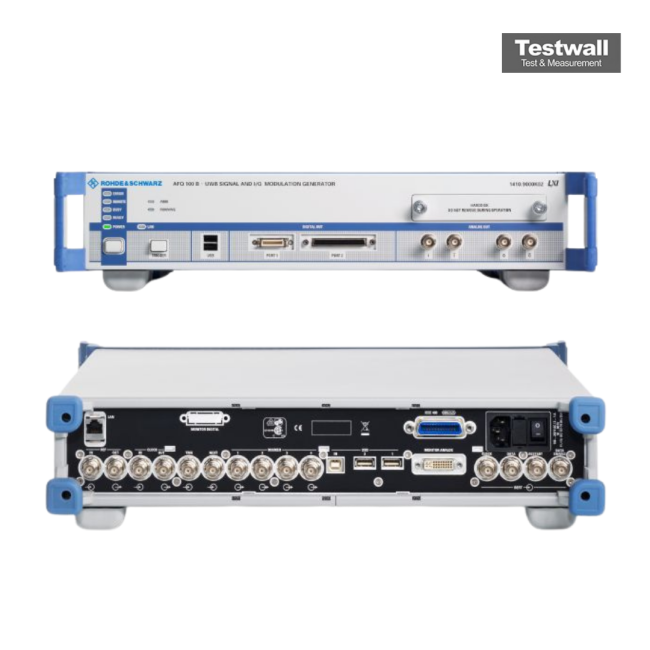

Rohde & Schwarz AFQ100B
| Attribute | Value |
|---|---|
| Channels | 2 (I and Q) |
| Amplitude | 0 to 1.4 Vpp (balanced) |
| Waveforms | arbitrary |
| Vertical Resolution | 14 bit |
| Timebase Aging | 1 × 10⁻⁶ per year |
| Frequency Range | 528 MHz RF bandwidth (200 MHz in mode 1) |
| Sample Rate | up to 600 MSa/s (1.2 GHz D/A clock) |
| Arbitrary Memory | 512 Msample or 1 Gsample (depending on configuration) |
| Output Impedance | 50 Ω |
| Output Connector | BNC |
| Interfaces | GPIB, LAN, USB |
| Dimensions | 426.7 × 87.6 × 450 mm |
| Weight | 7.5 kg |
The Rohde & Schwarz AFQ100B UWB Signal and I/Q Modulation Generator delivers high-performance ultra-wideband (UWB) signal generation with a frequency range of up to 6 GHz and wide modulation bandwidth. It features 16-bit resolution, large memory depth, and fast waveform switching, making it ideal for advanced research and development in wireless communications and radar applications.
Used for precise generation of complex digital and analog signals, the AFQ100B supports real-time signal creation and playback, suited for design validation and receiver testing across diverse protocols.
Testwall can supply the used Rohde & Schwarz AFQ100B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz AFQ100B.
Options and configurations
- Arbitrary Memory: 512 Msample (Opt. B12) or 1 Gsample (Opt. B11)
