Tektronix AWG5014
| Attribute | Value |
|---|---|
| Sample Rate | Up to 1.2 GS/s |
| Number of Channels | 4 analog output channels |
| Vertical Resolution | 14-bit DAC resolution |
| Analog Output Amplitude | 20 mVpp to 2 Vpp (into 50 Ω) |
| Waveform Memory | Up to 64.8 M samples per channel |
| Bandwidth | 240 MHz analog bandwidth |
| Digital Marker Outputs | 2 marker outputs per channel (8 total) |
| Clock Reference | Internal or external 10 MHz reference clock |
| Sequence Length | Up to 8,000 sequence steps |
| Operating System / Interface | Windows XP Embedded with GPIB, USB, and LAN connectivity |
| Model | AWG5014 |
|---|

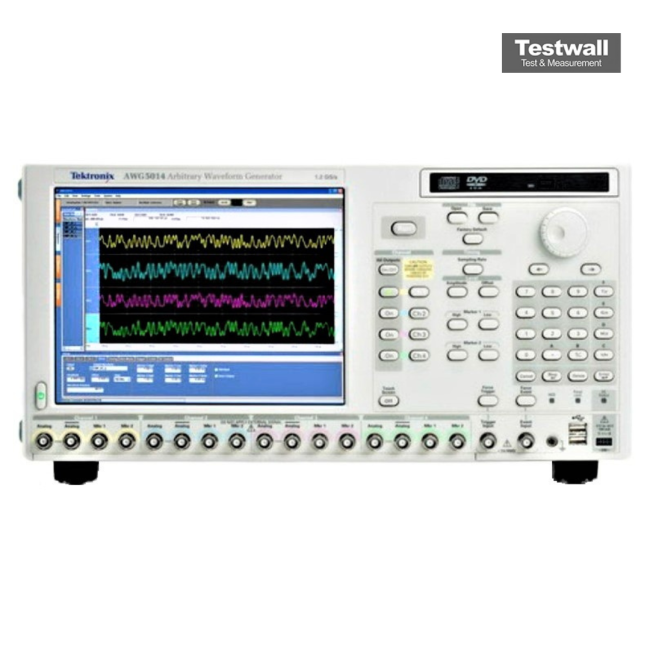

The Tektronix AWG5014 is a four-channel arbitrary waveform generator tailored for RF and mixed-signal testing. With 1.2 GS/s per channel and high-resolution signal design capabilities, it allows users to craft complex and accurate waveforms. The unit includes four analog output channels and supports extensive modulation formats, backed by integrated clock and trigger systems.
Ideal for engineers working on advanced RF applications, the AWG5014 offers deep signal customization and synchronization for high-precision results in demanding environments.
Testwall can supply the used Tektronix AWG5014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AWG5014.
