Rohde & Schwarz EB200
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 3 GHz |
| Sensitivity | Up to -7 dBµV (AM, 1 kHz, 30% modulation) |
| Intermediate Frequency (IF) Bandwidth | 10 Hz to 1 MHz (selectable) |
| Demodulation Modes | AM, FM, USB, LSB, CW, IQ |
| Dynamic Range | Greater than 100 dB |
| Frequency Resolution | 1 Hz |
| Antenna Input Impedance | 50 Ohms |
| Power Supply | AC 100–240 V, 50/60 Hz; DC 10.5–32 V |
| Dimensions (W x H x D) | 332 mm x 88 mm x 350 mm (2U rack-mountable) |
| Weight | Approximately 9 kg |
| Model | EB200 |
|---|

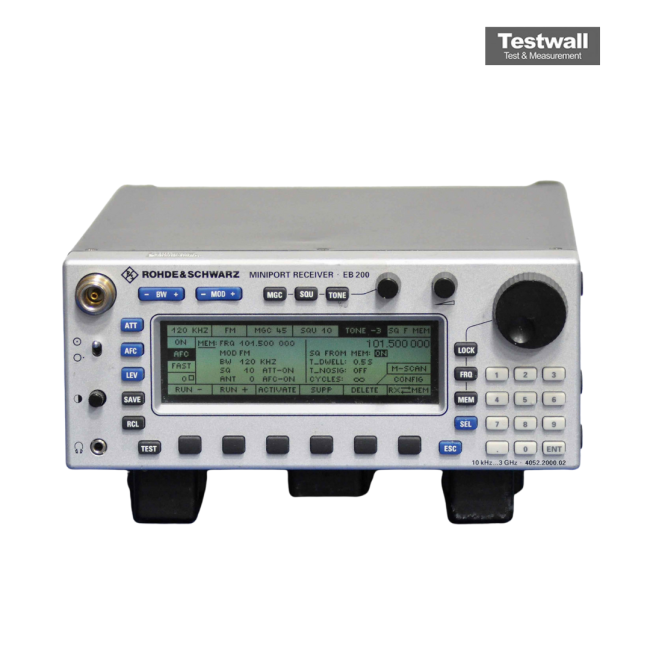

The Rohde & Schwarz EB200 is a miniport receiver engineered for radiomonitoring and interference detection with a frequency range from 10 kHz to 3 GHz. It supports fast, precise level indication across a dynamic range of 110 dB and features digital IF with 12 bandwidths from 150 Hz to 150 kHz. The device offers scanning modes including frequency and memory scanning, and optional spectrum and IF panorama displays.
Ideal for locating unauthorized transmitters and tracking targets from close to medium range using the Handheld Directional Antenna HE200. It also supports ergonomic on-body operation and remote control via RS-232 CPPP or LAN (Ethernet 10Base-T).
Testwall can supply the used Rohde & Schwarz EB200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz EB200.
