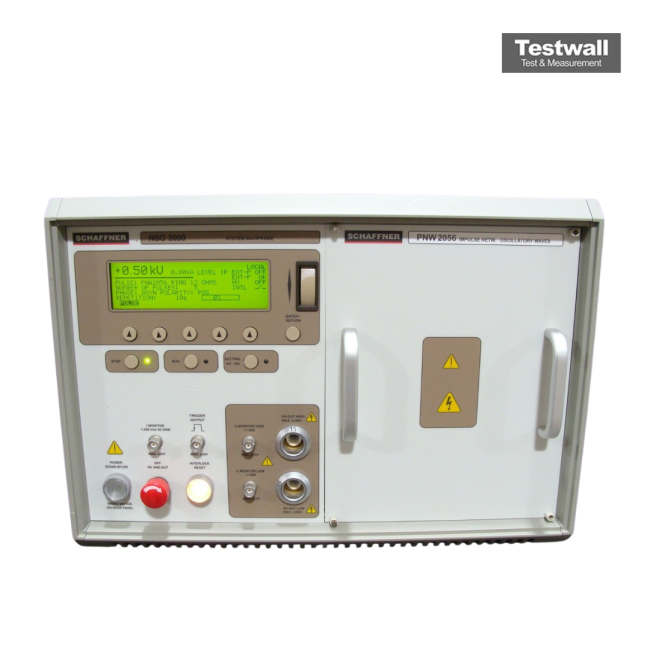

Schaffner NSG2050
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Pulse Rise Time | 5 ns (typical) |
| EFT/Burst Frequency | 1 Hz to 1 MHz |
| Compliance Standards | IEC 61000-4-4, EN 61000-4-4 |
| Output Impedance | 50 Ω |
| Burst Duration | 0.75 ms / 15 ms (per IEC 61000-4-4) |
| Burst Period | 300 ms / 20 ms (per IEC 61000-4-4) |
| Power Supply Input | 100–240 VAC, 50/60 Hz |
| Interface / Control | USB, RS-232, and front panel controls |
| Operating Temperature | 0°C to 40°C |
Schaffner NSG2050 Options:
- NSG2050 - PNW2050 - High energy hybrid surge pulse network, 1.2/50µs – 8/20µs, 200V to 6600V, up to 3300A
- NSG2050 - PNW2051 - Telecom pulse network, 10/700µs and 0.5/700µs, 200V to 6600V, up to 440A
- NSG2050 - PNW2052 - 100kHz ringwave pulse network, 0.5µs/100kHz, 200V to 6600V, up to 550A
- NSG2050 - PNW2053B - FCC Part 68 pulse network, 2/10µs, 10/160µs, 10/560µs, 9/720µs
- NSG2050 - PNW2055 - Hybrid surge generator, 1.2/50µs – 8/20µs, 200V to 4400V, up to 2200A, built-in coupling network 16A
- NSG2050 - PNW2056 - High frequency pulse generator, damped oscillatory waves 100kHz and 1MHz, up to 4kV
- NSG2050 - PNW2003 - Power quality simulator (drop-outs, dips, interruptions, variations), EUT power 12V to 250V, 16A nominal
- NSG2050 - PNW2225 - Burst pulse network, 5/50ns, 200V to 4800V, 100Hz to 1MHz, built-in coupling network 16A
- NSG2050 - INA2050 - 2 Slot Extension chassis
- NSG2050 - INA122 - Test Box
- NSG2050 - INA260 - Accessory unit
- NSG2050 - INA2055 - Specific accessory for PNW2055
- NSG2050 - CDN131 - Single-phase surge coupling network, 20V to 230Vac, 50/60Hz, 25A continuous
- NSG2050 - CDN133 - Three-phase surge coupling network, 3 x 20V to 440Vac, 50/60Hz, 25A continuous
- NSG2050 - CDN151 - Single-phase burst coupling option for CDN131
- NSG2050 - CDN153 - Three-phase burst coupling option for CDN133
- NSG2050 - CDN141 - Coupling/decoupling network for telecom line test (FCC Part 68)
- NSG2050 - CDN117 - Signal/dataline coupling network
- NSG2050 - CDN118 - Signal/dataline coupling network
- NSG2050 - CDN126 - Signal/dataline coupling network
- NSG2050 - NSG642 - Automated variable AC source (VARIAC), motor driven transformer extension, 1 to 280Vac, 16A continuous
- NSG2050 - UKAS - UKAS Calibration option
| Model | NSG2050 |
|---|
The Schaffner NSG 2050 is a conducted immunity EMC test system featuring a modular concept and a versatile range of pulse networks compliant with IEC, ANSI, and other standards. It is engineered for both industrial and telecom applications, offering high adaptability and reliable testing capabilities with advanced software integration.
Designed for precision, the Schaffner NSG 2050 ensures accurate immunity testing across various specifications, making it a trusted solution for professionals in compliance testing environments.
Testwall can supply the used Schaffner NSG 2050, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG 2050.
