Rohde & Schwarz ESHS10
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 30 MHz |
| Impedance | 50 Ω / 150 Ω (switchable) |
| Maximum Continuous Voltage (DC) | 250 V DC |
| Maximum Continuous Current | 10 A |
| Insertion Loss | < 1 dB (typical) |
| Voltage Division Factor | 10 dB (at 50 Ω) / 20 dB (at 150 Ω) |
| Connectors | N-type RF connector, binding posts for line connection |
| Compliance Standards | CISPR 16-1-2, VDE 0876 |
| Operating Temperature Range | 0 °C to +55 °C |
| Dimensions (W × H × D) | Approximately 220 mm × 90 mm × 195 mm |
| Model | ESHS10 |
|---|

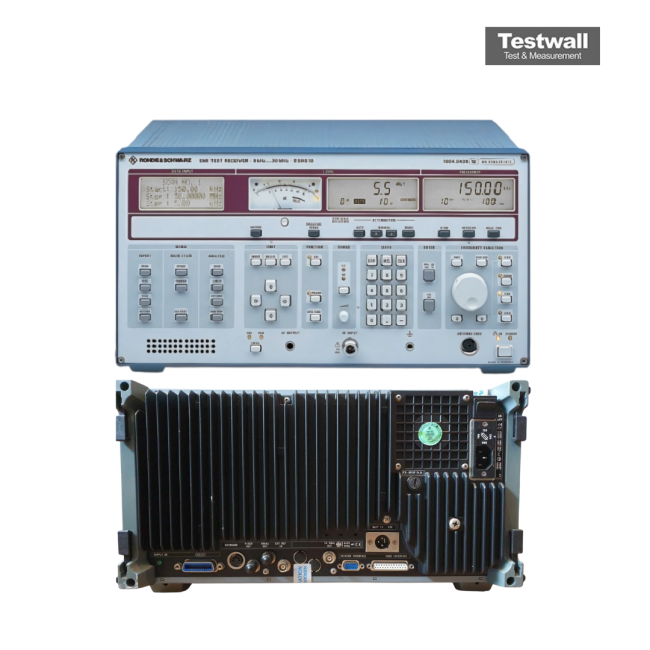

The Rohde & Schwarz ESHS10 is a used EMI test receiver tailored for commercial standard measurements including CISPR16, VDE0876, and ANSI C63.2. It features a wide frequency range from 9 kHz to 30 MHz, multiple detection methods (peak, average, quasi-peak), and advanced capabilities like a high-isolation input mixer, synthesizer-tuned LO, and automatic overload detection. With mains-independent battery power, it offers flexibility for both stationary and mobile testing environments.
Ideal for development and approval tests, the ESHS10 supports digital and analog level indication, automatic self-tests, and high measuring accuracy of <1 dB. Field strength can be measured using external antennas.
Testwall can supply the used Rohde & Schwarz ESHS10, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESHS10.
