Rohde & Schwarz ESI40
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 40 MHz |
| Frequency Resolution | 1 Hz |
| Displayed Average Noise Level (DANL) | –147 dBm (typical, 1 Hz bandwidth) |
| Level Measurement Range | –120 dBm to +20 dBm |
| Input Impedance | 50 Ω |
| Dynamic Range | Up to 110 dB |
| Resolution Bandwidth (RBW) | 10 Hz – 1 MHz (CISPR, MIL, and user-defined filters) |
| Compliance Standards | CISPR 16-1-1, MIL-STD-461, FCC, VDE |
| Detector Types | Peak, Quasi-Peak, Average, RMS, CISPR Average |
| Interface / Connectivity | LAN (Ethernet), USB, IEC 625/IEEE 488 (GPIB) |
| Model | ESI40 |
|---|

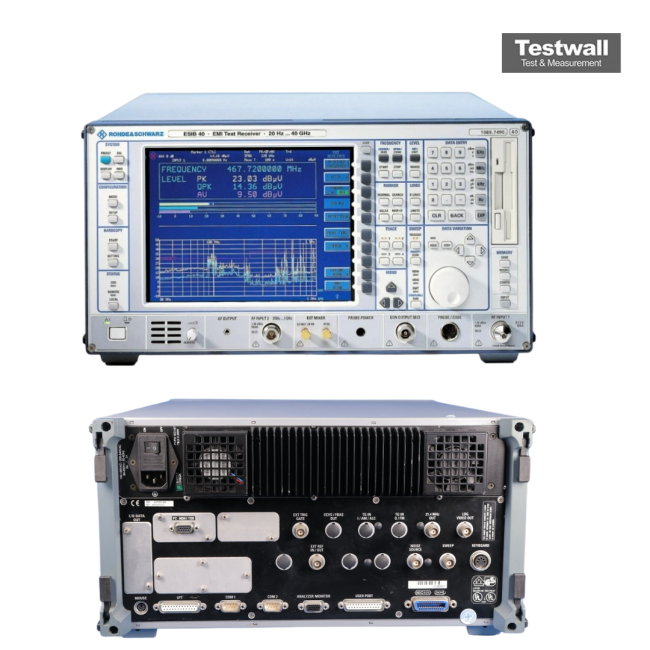

The Rohde & Schwarz ESI40 EMI Test Receiver spans 20 Hz to 40 GHz with high sensitivity (NF typ. 10 dB), excellent large-signal immunity (+10 dBm), and low uncertainty (< 1 dB up to 1 GHz). It integrates fast scanning, dual RF inputs, preamplifier, preselection, parallel detectors, automated overload detection, and advanced evaluation functions. It fully conforms to CISPR 16-1-1 and meets various global civil and military EMC standards.
Ideal for EMC labs, military, and governmental use, it supports fast spectrum analysis and EMI certification tests with precise control and customization, ensuring optimal diagnostics and compliance.
Testwall can supply the used Rohde & Schwarz ESI40 EMI Test Receiver, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESI40 EMI Test Receiver.
