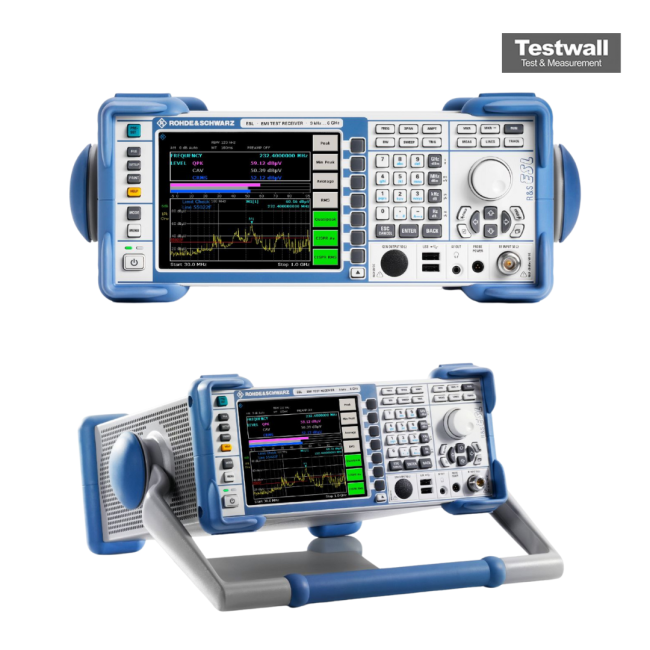

Rohde & Schwarz ESL3 EMI Test Receiver
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Frequency Resolution | 1 Hz |
| CISPR Bandwidths | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Detectors | Peak, Quasi-Peak, Average, RMS |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Display | 10.4-inch color TFT LCD touchscreen |
| Interfaces | USB, LAN (Ethernet), GPIB, RS-232 |
| Compliance Standards | CISPR 16-1-1, EN 55016-1-1, MIL-STD-461 |
Rohde & Schwarz ESL3 EMI Test Receiver Options:
- ESL3 - FSL-B4 - OCXO Reference Frequency
- ESL3 - FSL-B5 - Additional Interfaces (video out, IF out, noise source control, AUX port, R&S NRP-Zx power sensor)
- ESL3 - FSL-B8 - Gated Sweep
- ESL3 - FSL-B10 - GPIB Interface
- ESL3 - FSL-B22 - RF Preamplifier (3/6 GHz)
- ESL3 - FSL-B30 - DC Power Supply
- ESL3 - FSL-B31 - NiMH Battery Pack (requires R&S FSL-B30)
- ESL3 - FSL-K7 - AM/FM/φM Measurement Demodulator
- ESL3 - FSL-K9 - Power Sensor Support (requires R&S FSL-B5 or R&S NRP-Z3/4)
- ESL3 - FSL-K30 - Application Firmware for Noise Figure and Gain Measurements (requires R&S FSL-B5 and preamplifier)
| Model | ESL3 |
|---|
The Rohde & Schwarz ESL3 is an EMI Receiver and Spectrum Analyser covering 9kHz to 3GHz, equipped with a tracking generator and various weighting detectors including Min/Max Peak, RMS, quasi-peak, and CISPR-average. It supports automated test sequences and offers multiple options like battery operation, OCXO, GP-IB interface, preamplifier, and demodulation capabilities for AM/FM/PM. Additional support includes power sensor, noise figure, and gain measurements.
Ideal for EMI compliance testing and spectrum analysis, the ESL3 provides comprehensive features in a compact unit suitable for both mobile and stationary applications.
Testwall can supply the used Rohde & Schwarz ESL3 EMI Test Receiver, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESL3 EMI Test Receiver.
