Rohde & Schwarz ESVB
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 1000 MHz |
| Sensitivity | Up to -20 dBµV (with preselector) |
| Resolution Bandwidth | 10 Hz to 1 MHz (in 1-3-10 steps) |
| Input Impedance | 50 Ω / 75 Ω (selectable) |
| CISPR Bandwidths | 200 Hz, 9 kHz, 120 kHz (CISPR-compliant) |
| Detector Types | Peak, Quasi-Peak, Average, RMS |
| Dynamic Range | Greater than 100 dB |
| Display Range | 100 dB (logarithmic), linear display available |
| Measurement Standards Compliance | CISPR 16, VDE 0876, FCC, MIL-STD-461 |
| IF Bandwidth | Selectable narrow and wide IF filter settings for EMI testing |
Rohde & Schwarz ESVB Options:
- ESVB - ESN-B1 - UHF Frontend 1000 MHz to 2050 MHz (with I/Q demodulator for IF bandwidths 10, 120 and 300 kHz)
| Model | ESVB |
|---|

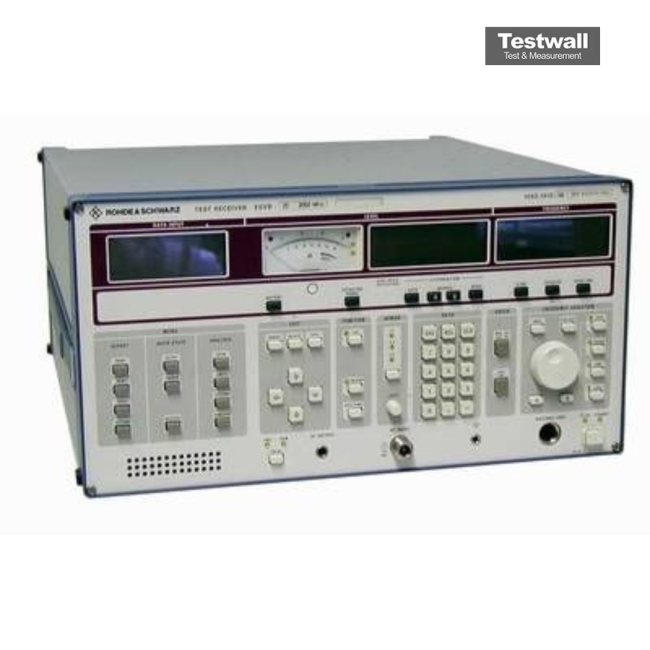

The Rohde & Schwarz ESVB is a professional EMI test receiver operating from 20 MHz to 2 GHz. It delivers 60 dB dynamic range for quasi-peak and average measurements and 70 dB for DVB/DAB modes, with preselector filters including one fixed-tuned and five tracking types to reduce out-of-band interference. It supports multiple detectors such as RMS, quasi-peak, and digital standards like DVB-T and DAB.
Ideal for EMC compliance, RF analysis, and signal monitoring, the ESVB features a high-resolution display and robust RF front-end, ensuring reliable performance in both lab and field applications.
Testwall can supply the used Rohde & Schwarz ESVB, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESVB.
