Rohde & Schwarz FSEK20
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 20 GHz |
| Resolution Bandwidth | 10 Hz to 10 MHz |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -155 dBm (typical) at 1 GHz with preamplifier |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Sweep Time | 2.5 ms to 16000 s |
| Video Bandwidth | 1 Hz to 10 MHz |
| RF Input Connector | N-type female (50 Ohm) |
Rohde & Schwarz FSEK20 Options:
- FSEK20 - FSE-B1 - Colour Display (factory-fitted only)
- FSEK20 - FSE-B3 - TV Demodulator (factory-fitted only)
- FSEK20 - FSE-B4 - Low Phase Noise and OCXO (for models 20)
- FSEK20 - FSE-B5 - FFT Filter 1 Hz to 1 kHz (for models 20)
- FSEK20 - FSE-B7 - Vector Signal Analyzer
- FSEK20 - FSE-B10 - Tracking Generator 7 GHz
- FSEK20 - FSE-B11 - Tracking Generator 7 GHz with I/Q Modulator
- FSEK20 - FSE-B12 - Switchable Attenuator for Tracking Generator (0 to 70 dB)
- FSEK20 - FSE-B15 - Controller for FSE (mouse and keyboard included)
- FSEK20 - FSE-B16 - Ethernet Interface (LAN integration for use in production)
- FSEK20 - FSE-B17 - 2nd IEC/IEEE-Bus Interface
- FSEK20 - FSE-B21 - External Mixer (factory-fitted only)
- FSEK20 - FSE-B22 - Increased Level Accuracy up to 2 GHz (factory-fitted only)
- FSEK20 - FSE-K3 - Noise Measurement Software, Windows
- FSEK20 - FSE-K4 - Phase Noise Measurement Software, Windows
- FSEK20 - FSE-K10 - GSM Application Firmware, Mobile
- FSEK20 - FSE-K11 - GSM Application Firmware, BTS
| Model | FSEK20 |
|---|

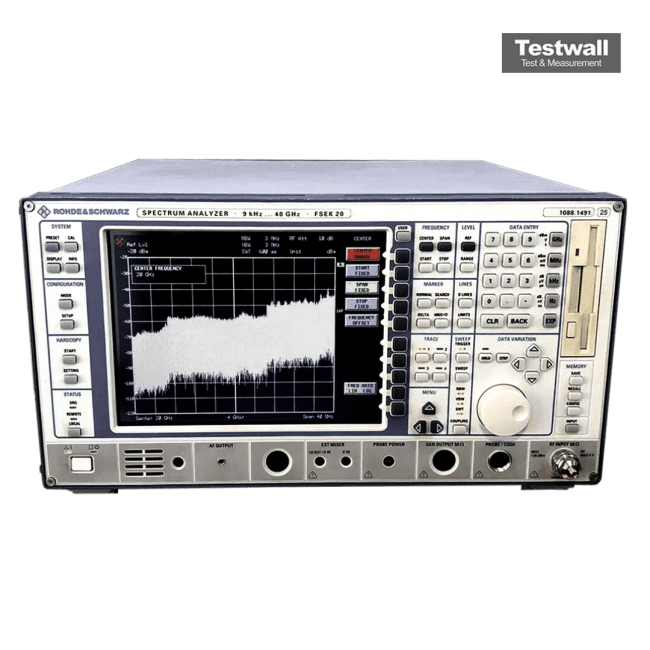

The Rohde & Schwarz FSEK20 is a high-performance spectrum analyser with a TFT color display, spanning frequencies from 9 kHz to 40 GHz. It features resolution bandwidths from 10 Hz to 10 MHz, and boasts a phase noise level up to -125 dBc/Hz. It also supports GPIB connectivity and offers a maximum dynamic range of 150 dBm.
Perfect for high-frequency signal analysis, the FSEK20 delivers precision in spectrum measurements, signal integrity checks, and electromagnetic compatibility testing.
Testwall can supply the used Rohde & Schwarz FSEK20, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSEK20.
