Rohde & Schwarz FSH3 (model .03)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Resolution Bandwidth | 100 Hz to 1 MHz |
| Display Range | 100 dB |
| Reference Level Range | -20 dBm to +20 dBm |
| Phase Noise | < -80 dBc/Hz at 10 kHz offset |
| Dynamic Range | > 85 dB |
| Input Impedance | 50 Ohm |
| Battery Operating Time | Up to 3 hours with internal battery |
| Display | Transflective color LCD, 320 x 240 pixels (QVGA) |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
Rohde & Schwarz FSH3 (model .03) Options:
- FSH3 - FSH-B1 - Distance-to-Fault Measurement (includes 1 m cable, FSH-Z2 required) - Order No. 1145.5750.02
- FSH3 - FSH-K1 - Remote Control via RS-232-C - Order No. 1157.3458.02
- FSH3 - FSH-K2 - Vector Transmission and Reflection Measurements - Order No. 1157.3387.02
- FSH3 - FSH-K3 - Receiver Mode - Order No. 1157.3429.02
- FSH3 - FSH-K4 - 3GPP FDD Code Domain Power BTS/Node B Measurement for FSH3 model .23 - Order No. 1300.7633.02
- FSH3 - FSH-Z1 - Power Sensor, 10 MHz to 8 GHz - Order No. 1155.4505.02
- FSH3 - FSH-Z2 - VSWR Bridge and Power Divider, 10 MHz to 3 GHz (open, short, 50 W load) - Order No. 1145.5767.02
- FSH3 - FSH-Z3 - VSWR Bridge with DC Bias and Bypass Connector for FSH, 10 MHz to 6 GHz (incl. calibration standards open, short, 50 Ω load) - Order No. 1300.7756.02
- FSH3 - FSH-Z14 - Directional Power Sensor, 25 MHz to 1 GHz - Order No. 1120.6001.02
- FSH3 - FSH-Z18 - Power Sensor, 10 MHz to 18 GHz - Order No. 1165.1909.02
- FSH3 - FSH-Z44 - Directional Power Sensor, 200 MHz to 4 GHz - Order No. 1165.2305.02
- FSH3 - RAZ - Matching Pad 50/75 W, 0 Hz to 2700 MHz - Order No. 0358.5714.02
- FSH3 - FSH-Z20 - Spare RF Cable (1 m), connectors N male/N female for FSH-B1 - Order No. 1145.5867.02
- FSH3 - FSH-Z21 - 12 V Car Adapter - Order No. 1300.7579.02
- FSH3 - FSH-Z22 - Serial/Parallel Converter - Order No. 1145.5880.02
- FSH3 - FSH-Z25 - Carrying Bag - Order No. 1145.5896.02
- FSH3 - FSH-Z26 - Transit Case - Order No. 1300.7627.02
- FSH3 - FSH-Z29 - Combined Short/Open and 50 Ω Load for VSWR and DTF calibration - Order No. 1300.7504.02
- FSH3 - FSH-Z30 - Spare Short/Open Calibration Standard for FSH-Z2 for VSWR calibration - Order No. 1145.5773.02
- FSH3 - FSH-Z31 - Spare 50 W Load Standard for FSH-Z2 for VSWR and DTF calibration - Order No. 1145.5780.02
- FSH3 - FSH-Z32 - Spare Battery Pack - Order No. 1145.5796.02
- FSH3 - FSH-Z33 - Spare AC Power Supply - Order No. 1145.5809.02
- FSH3 - FSH-Z34 - Spare RS-232-C Optical Cable - Order No. 1145.5815.02
- FSH3 - FSH-Z35 - Spare CD-ROM with Control Software FSH View and documentation - Order No. 1145.5821.02
- FSH3 - FSH-Z36 - Spare Headphones - Order No. 1145.5838.02
- FSH3 - FSH-Z37 - Spare USB Optical Cable - Order No. 1300.7733.02
- FSH3 - FSH-Z38 - Matching Pad 50/75 W, 0 Hz to 1000 MHz - Order No. 1300.7740.02
- FSH3 - HE200 - Active Directional Antenna - Order No. 4050.3509.02
- FSH3 - TS-EMF - Isotropic Antenna, 30 MHz to 3 GHz for FSH3 - Order No. 1158.9295.13
- FSH3 - HZ-15 - Near-Field Probe Set - Order No. 1147.2736.02
- FSH3 - HZ-16 - Preamplifier for HZ-15 - Order No. 1147.2720.02
| Model | FSH3 |
|---|

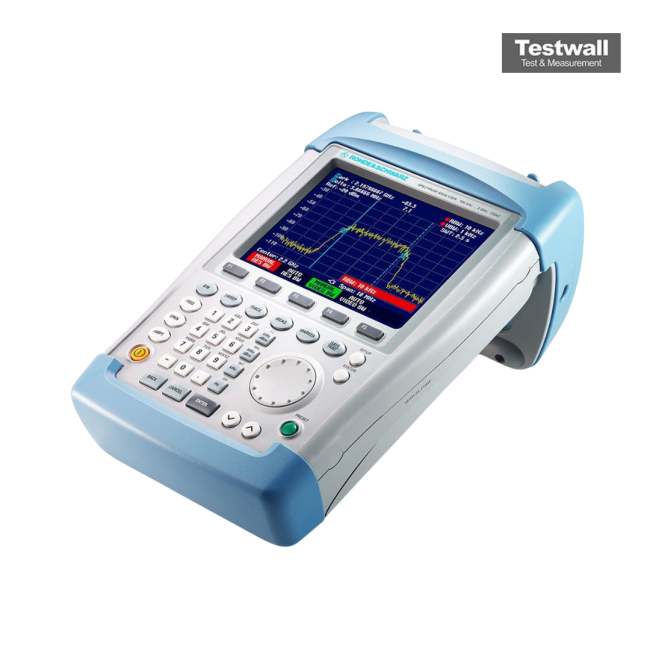

The Rohde & Schwarz FSH3 Model 03 is a compact, handheld spectrum analyzer optimized for field use. It delivers precise measurements across a wide frequency range of 100 kHz to 3 GHz, making it ideal for various RF signal analysis tasks. Its rugged design and battery operation ensure robust performance in demanding environments.
This analyzer is perfectly suited for on-site RF system installation, maintenance, and service. Its intuitive interface supports both novice and expert users for efficient diagnostics.
Testwall can supply the used Rohde & Schwarz FSH3 Model 03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH3 Model 03.
