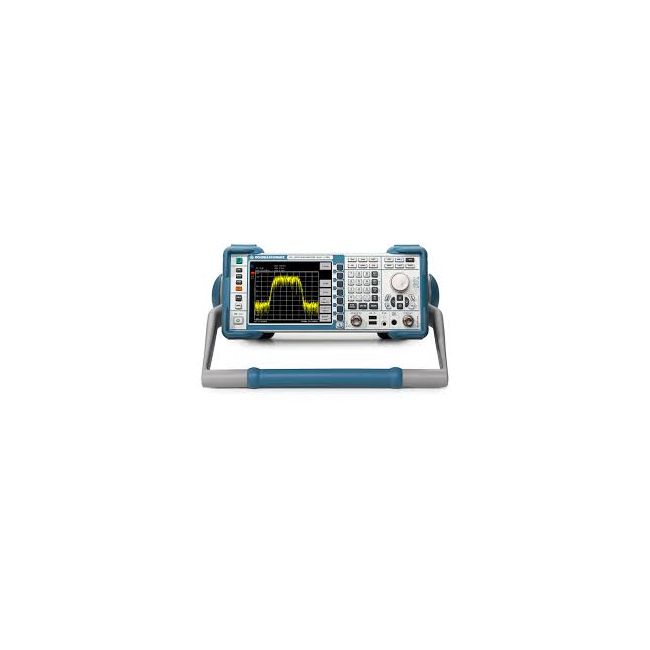

Rohde & Schwarz FSL6-16 6 GHz Spectrum Analyzer, Type N (f)
6 GHz Spectrum Analyzer
9 kHz to 6 GHz Frequency Range
Type N (female) Connector Type
10 Hz to 3 MHz Resolution Bandwidth
-135 dBm (typical, 1 GHz, preamp off) Display Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset (typical, 1 GHz carrier) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Connector Type | Type N (female) |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -135 dBm (typical, 1 GHz, preamp off) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical, 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Display | 10.4-inch color TFT LCD, 800 x 600 pixels |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
Rohde & Schwarz FSL6-16 6 GHz Spectrum Analyzer, Type N (f) Options:
- FSL - FSL-B10 - GPIB Interface (1300.6208.02)
- FSL - FSL-B22 - RF Amplifier (1300.5953.02)
- FSL - FSL-B30 - DC Power Supply (1300.6308.02)
- FSL - FSL-B31 - NIMH Battery Pack (1300.6408.02)
- FSL - FSL-Z4 - Additional Charger Unit (1300.5430.02)
| Model | FSL6-16 |
|---|
The Rohde & Schwarz FSL6 is a 6 GHz spectrum analyzer with advanced features including a tracking generator and I/Q demodulation up to 28 MHz bandwidth. It’s compact yet capable of high-end analysis.
Ideal for development, production, and service, it offers LAN/USB interfaces, embedded Windows XP OS, and precise power/channel measurements with optional gated sweep and sensor support.
Testwall can supply the used Rohde & Schwarz FSL6 Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL6 Spectrum Analyzer.
