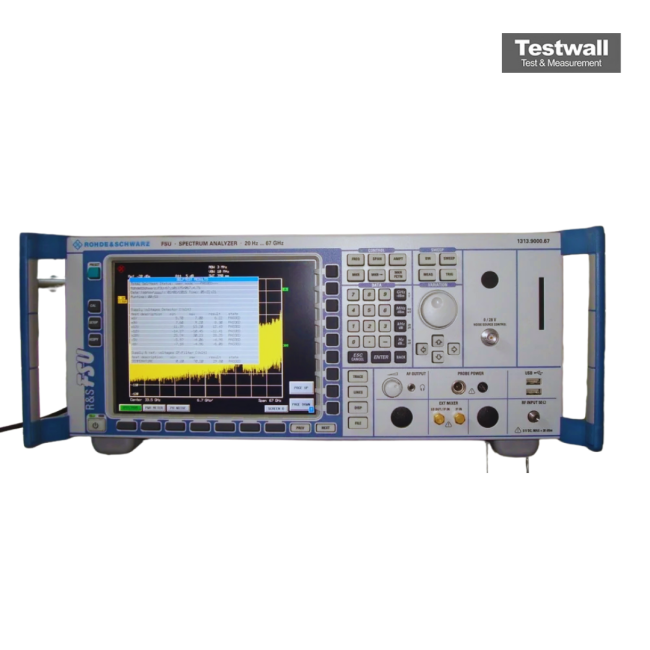

Rohde & Schwarz FSU67
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 67 GHz |
| Resolution Bandwidth | 10 Hz to 50 MHz |
| Displayed Average Noise Level (DANL) | -155 dBm (typ.) at 2 GHz, preamp on |
| Phase Noise | -130 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Total Amplitude Accuracy | < 0.4 dB (typ.) at 20 Hz to 3.6 GHz |
| Third-Order Intercept (TOI) | +15 dBm (typ.) at 2 GHz |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) continuous, DC 50 V max |
| Dynamic Range | Up to 110 dB |
| Sweep Time | 2.5 ms to 16000 s (span > 0 Hz) |
Rohde & Schwarz FSU67 Options:
- FSU67 - B0 - Delete Manual
- FSU67 - B4 - Highly Accurate Reference Frequency
- FSU67 - FSP-B10 - External Generator Control
- FSU67 - B16 - LAN Interface 100BT
- FSU67 - B18 - Removable Hard Disk
- FSU67 - B19 - Second Hard Disk for FSU-B18
- FSU67 - B20 - Extended Environmental Specification
- FSU67 - B25 - Electronic Attenuator, 0 dB to 30 dB, with integrated 20 dB preamplifier
- FSU67 - FS-K3 - Noise Measurement Software
- FSU67 - FS-K4 - Phase Noise Measurement Software
- FSU67 - FS-K5 - GSM/EDGE Application Firmware
- FSU67 - FS-K7 - FM Measurement Demodulator
- FSU67 - FS-K72 - 3GPP BTS/Node B FDD Application Firmware
- FSU67 - FSU-Z1 - Service Kit
| Model | FSU67 |
|---|
The Rohde & Schwarz FSU67 Spectrum Analyzer covers 20 Hz to 67 GHz directly, ensuring precise results without external mixers. It delivers outstanding dynamic range with TOI > 20 dBm and ultra-low noise floor to –152 dBm/Hz. Advanced features include wide RBW (10 Hz–50 MHz), versatile detection modes, and built-in analysis tools.
Perfect for aerospace, radar, satellite communications, and mmWave R&D, its robust performance and extensive I/O options make it indispensable in advanced RF labs.
Testwall can supply the used Rohde & Schwarz FSU67, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSU67.
