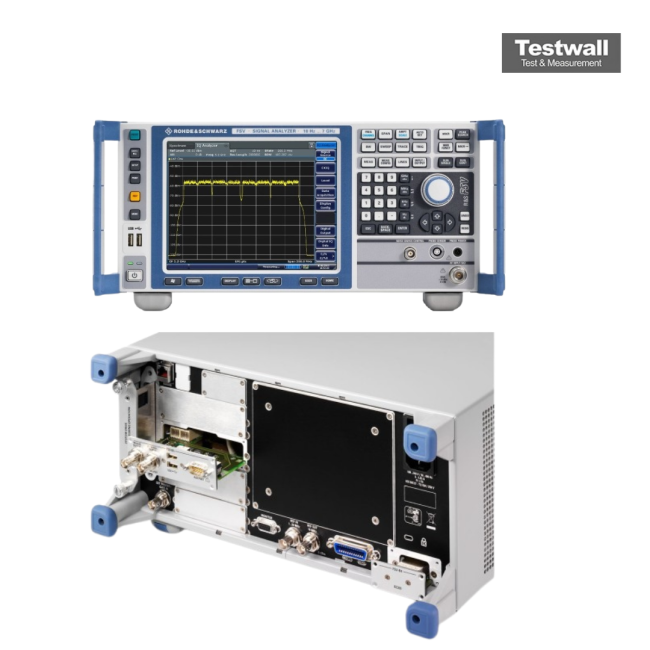

Rohde & Schwarz FSV30 9KHz - 30GHz Spectrum Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Displayed Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz with preamplifier |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 78 dB (TOI-based) |
| Sweep Time | 1 ms to 16000 s (span > 0) |
| RF Input Connector | N-type female (front panel) |
| Display | 10.4-inch XGA color TFT LCD touchscreen |
Rohde & Schwarz FSV30 9KHz - 30GHz Spectrum Analyser Options:
- FSV30 - B1 - Ruggedized Housing
- FSV30 - B3 - Audio Demodulator
- FSV30 - B4 - OCXO Reference Frequency (model .02)
- FSV30 - B4 - OCXO Extended Frequency Stability (model .03)
- FSV30 - B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2 × USB)
- FSV30 - B9 - Tracking Generator (100 kHz to 7 GHz)
- FSV30 - B10 - External Generator Control
- FSV30 - B14 - Ultra-High Precision Frequency Reference
- FSV30 - B17 - Digital Baseband Interface
- FSV30 - B18 - Solid-State Drive (removable hard drive)
- FSV30 - B19 - Spare Hard Drive (removable hard drive)
- FSV30 - B21 - LO/IF Ports for External Mixers
- FSV30 - B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSV30 - B24 - RF Preamplifier (9 kHz to 30 GHz)
- FSV30 - B25 - Electronic Attenuator, 1 dB steps
- FSV30 - B30 - DC Power Supply for 12 V Supply Voltage
- FSV30 - B32 - Lithium-Ion Battery Pack
- FSV30 - B34 - Lithium-Ion Battery Charger
- FSV30 - B70 - 40 MHz Analysis Bandwidth
- FSV30 - B160 - 160 MHz Analysis Bandwidth
- FSV30 - K7 - Analog Modulation Analysis for AM, FM, φM
- FSV30 - K7S - FM Stereo Measurements
- FSV30 - K8 - Bluetooth/EDR Measurements
- FSV30 - K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSV30 - K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSV30 - K14 - Spectrogram Measurements
- FSV30 - K30 - Noise Figure and Gain Measurements
- FSV30 - K40 - Phase Noise Measurement Application
- FSV30 - K54 - EMI Measurement Application
- FSV30 - K70 - Vector Signal Analysis
- FSV30 - K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSV30 - K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSV30 - K76 - 3GPP TD-SCDMA BTS Measurements
- FSV30 - K77 - TD-SCDMA UE Measurements
- FSV30 - K82 - Analysis of CDMA2000 Base Station Signals
- FSV30 - K83 - CDMA2000 MS Measurements
- FSV30 - K84 - Analysis of 1xEV-DO Base Station Signals
- FSV30 - K85 - 1xEV-DO MS Measurements
- FSV30 - K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSV30 - K91AC - WLAN 802.11ac Measurement Application
- FSV30 - K91n - Extension of R&S FSV-K91 to 802.11n
- FSV30 - K93 - Analysis of WiMAX 802.16 SISO Signals
- FSV30 - K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSV30 - K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSV30 - K102 - EUTRA/LTE Downlink MIMO Measurements
- FSV30 - K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSV30 - K105 - Analysis of EUTRA/LTE TDD Uplink Signals
| Model | FSV30 |
|---|
The Rohde & Schwarz FSV30 is a 9 kHz to 30 GHz signal and spectrum analyzer tailored for RF system development, production, and maintenance. It features up to 160 MHz analysis bandwidth, enabling high-resolution digital modulation analysis for advanced cellular and wireless standards. Its portable design supports reliable operation both in the lab and in the field.
Designed for versatility, it supports thorough testing of components, chipsets, and base stations. Ideal for tasks requiring precision in dynamic RF environments.
Testwall can supply the used Rohde & Schwarz FSV30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSV30.
